How do I know what mesh count I need for my project?

Mesh selection depends entirely on your ink type and design detail: 110 to 160 Mesh: Best for thick inks (like plastisol), block letters, large spot colors, and underbase prints. 200 Mesh: The "sweet spot" for achieving a softer hand-feel with plastisol while maintaining good detail. 230 to 305 Mesh: Required for water-based or discharge inks, fine lines, half-tones, and high-detail CMYK process printing.

High-Tension Aluminum Screen Printing Frames | Durable Industrial Mesh Frames

Q: Why choose aluminum frames over traditional wooden frames?

Aluminum frames are the industry standard for professional U.S. print shops. Unlike wood, aluminum will never warp, bow, or swell when exposed to water in the washout booth or chemicals during reclaiming. This guarantees perfectly flat registration and consistent mesh tension over hundreds of print runs.

Q: How many Newtons (tension) are these pre-stretched frames pulled to?

Our frames are professionally stretched using high-grade, low-elongation monofilament polyester mesh. They are typically tensioned between 20 to 25 Newtons (N/cm) depending on the mesh count. This optimal range ensures crisp snap-off and excellent registration without risking mesh tearing.

Q: Can these aluminum frames be re-meshed once the screen pops or tears?

Yes. One of the greatest financial benefits of aluminum frames is their durability. Once the original mesh wears out or tears, the aluminum frame itself remains perfectly intact. You can send the empty frames to a local U.S. re-meshing service or use a professional in-house stretching system to replace the mesh.

Q: How should I store my aluminum screens to ensure they last?

Store your screens horizontally or vertically on a dedicated screen rack in a dry, temperature-controlled environment. Avoid stacking heavy objects directly on top of the mesh. Keep them away from sharp tools, and ensure they are completely dry after reclaiming to prevent any premature adhesive degradation.

Your cart is empty

Continue shopping

Standard (5-7 business days) or Rush (2-3 business days).

7 days money back guarentee, buyer pays return shipping

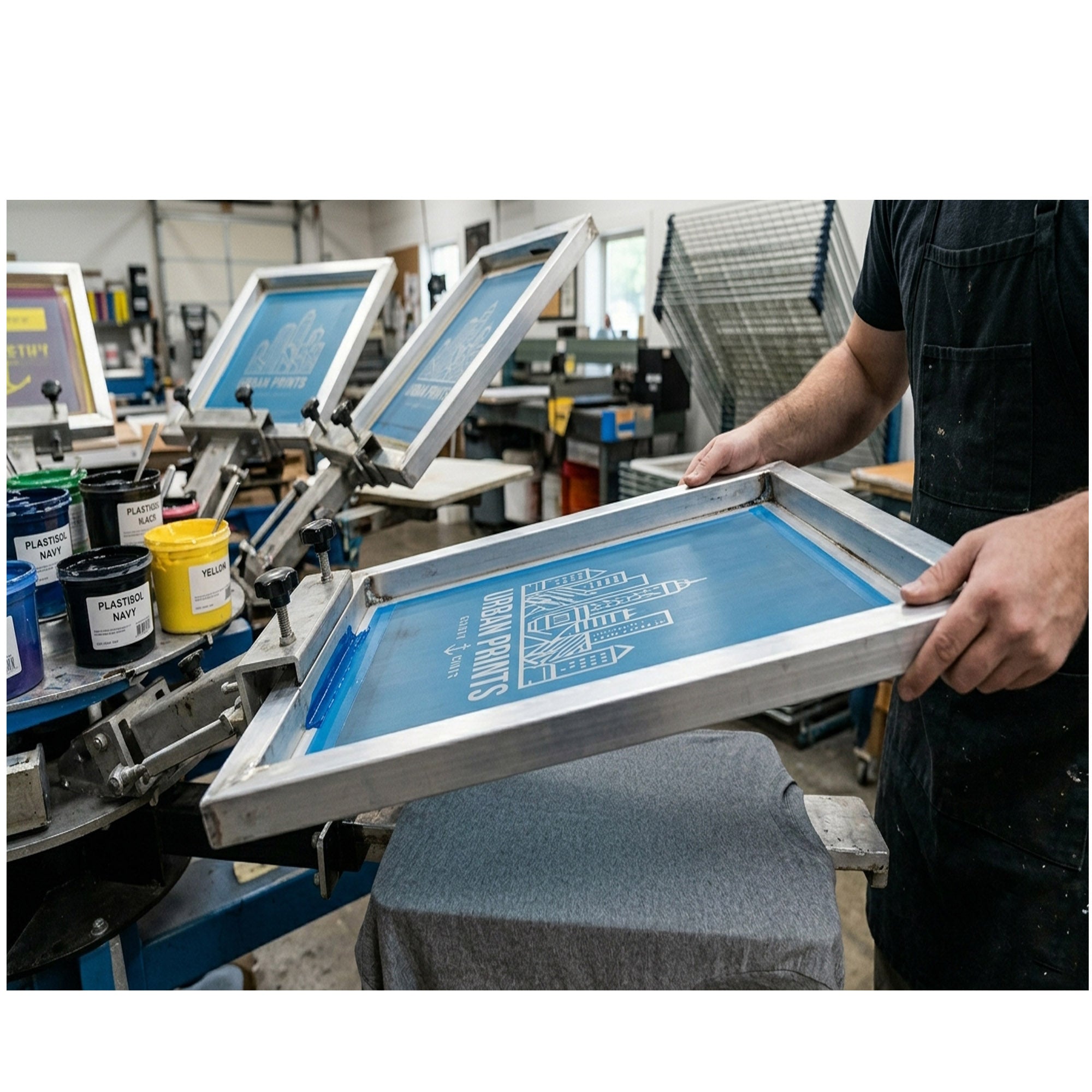

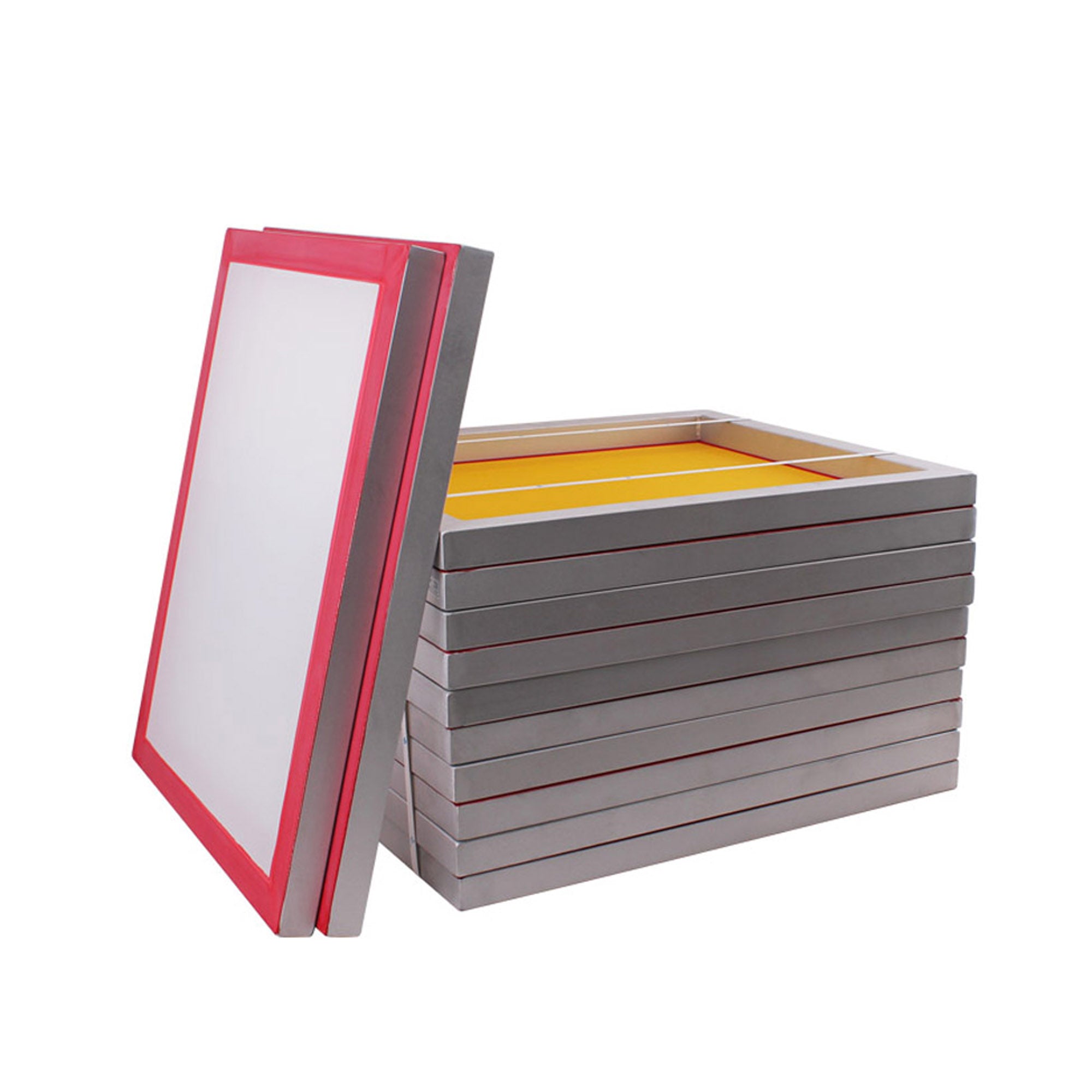

SHL LA SUPPLY Pre-Stretched Aluminum Screen Printing Frames 20" x 24"

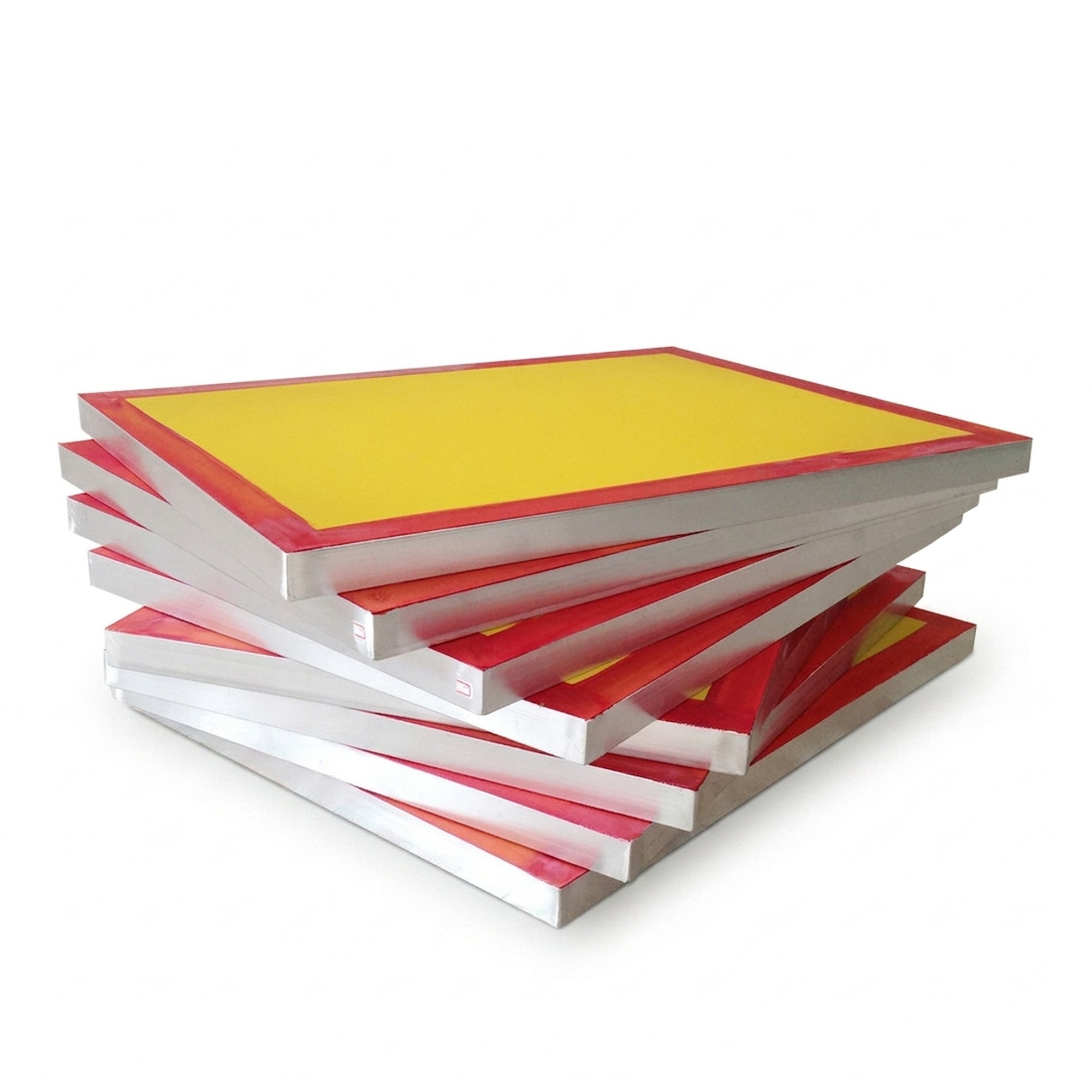

SHL LA SUPPLY Pre-Stretched Aluminum Screen Printing Frames 23" x 31"

Specification	23" x 31" Frame	20" x 24" Frame
Outer Dimension	23” x 31”	20” x 24”
Tube Profile	1.5"	1.4"
Tube Thickness	1/16”	1/18”
Tube Weight	1.4 Lbs	1.1 Lbs
Max Printable Area	< 17" x 25"	< 14" x 18”
Rec. Scoop Coater	19"	16”
Max Squeegee Size	18"	15”

Mesh Count	Thread Dia.	Ink Deposit	Best Applications	Recommended Inks
110 Mesh	80 µm	Thick	Block text, large spot colors, underbase prints. One-pass production.	Plastisol, High-opacity inks
160 Mesh	64 µm	Medium	General textile printing, basic to semi-fine details.	All-purpose, thinner inks
200 Mesh	48 µm	Thin	Detailed prints, soft-hand feel. Reduces ink flooding.	Thinner inks, Plastisol
230 Mesh	48 µm	Very Thin	Fine halftones, delicate lines. Higher ink flow than 305.	Water-based, Discharge
280 Mesh	40 µm	Extra Thin	High-detail halftones, intricate gradients.	Water-based, Discharge
305 Mesh	40 µm	Thinnest	Highest detail, CMYK process, simulated process prints.	Ultra-thin, High-precision

Feature	Specification
Material	High-Grade Lightweight Aluminum
Frame Type	Industrial-Standard Screen Frame
Corrosion Resistance	Excellent (Suitable for water-based & solvent inks)
Performance	High-tension stability, distortion-free

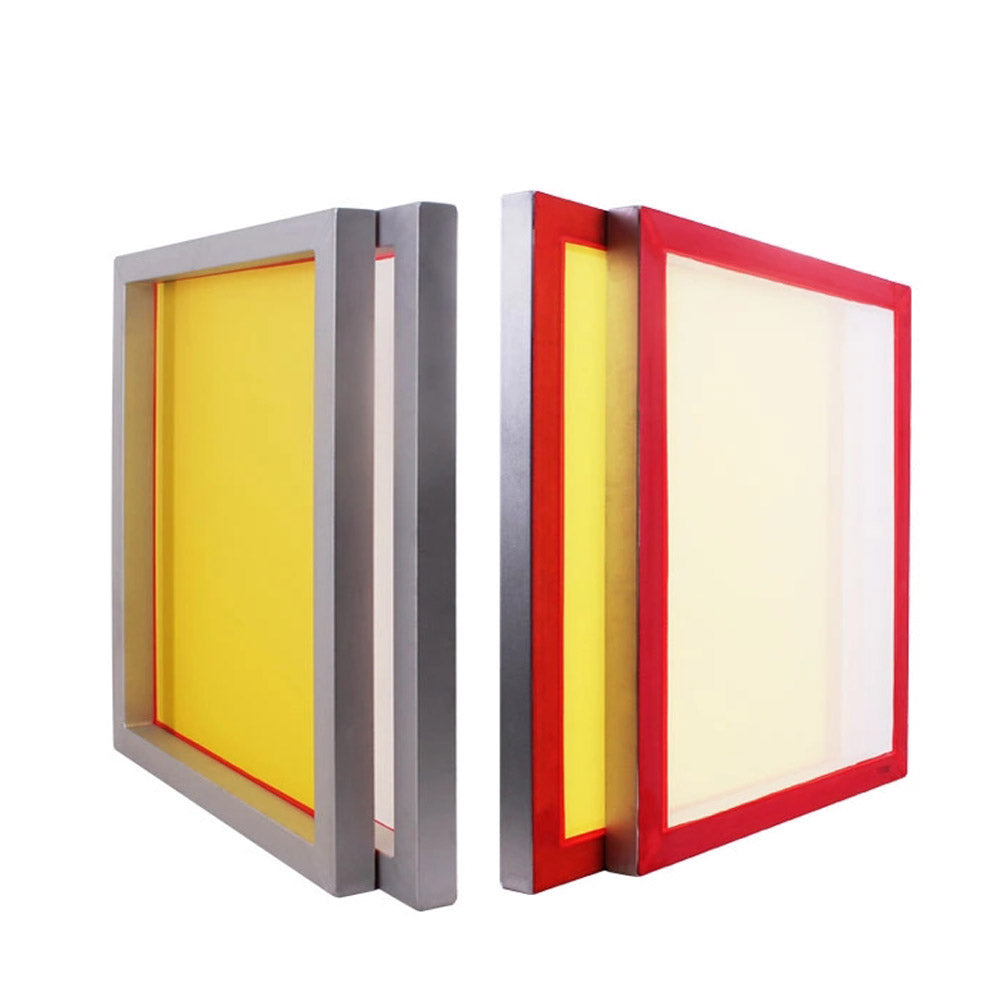

Our high tension aluminum screen printing frames are designed for professional printers who demand consistent mesh tension, accurate registration, and exceptional print quality. Manufactured from durable aluminum and pre-stretched with premium polyester mesh, these screens resist warping, maintain tension longer, and deliver sharper details for textile, graphic, and industrial screen printing applications.

Ensure perfect performance by pairing this frame with our [waterproof clear Film] and [Squeegee Blades] for optimal print results

Key Features

High-Grade Aluminum Construction: * Manufactured from aircraft-grade aluminum alloy, these frames offer a superior strength-to-weight ratio. Unlike wooden frames, they are completely water-resistant and will not warp or swell after repeated wash-and-reclaim cycles.
High-Tension Mesh Bonding: * The mesh is bonded to the frame using specialized industrial adhesives that resist chemical solvents. This ensures the mesh maintains optimal tension (measured in Newtons) for a longer lifespan, resulting in sharper image registration.

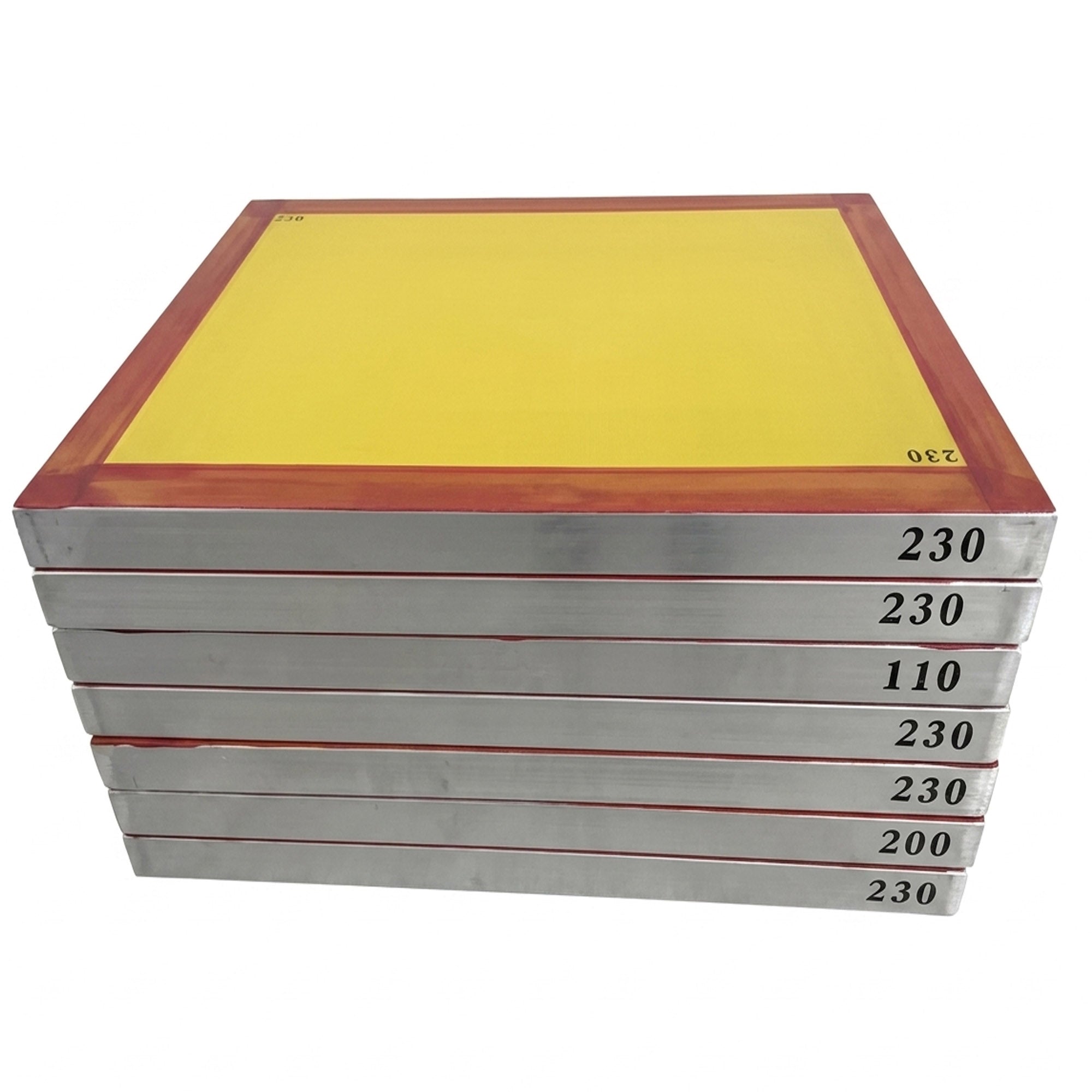

Precision Pre-Stretching: * Each frame comes pre-stretched with high-quality monofilament polyester mesh. Available in various mesh counts (e.g., 110, 156, 230, 305), allowing for everything from heavy athletic ink deposits to fine halftone details.
Sandblasted Surface for Adhesion: * The "mesh side" of the aluminum is typically sandblasted to provide a textured surface, ensuring the maximum possible bond between the aluminum and the fabric mesh.
Smooth Welded Edges: * Corners are precision-welded and ground smooth to prevent "mesh popping" and to ensure the frames stack neatly without scratching.

Applications

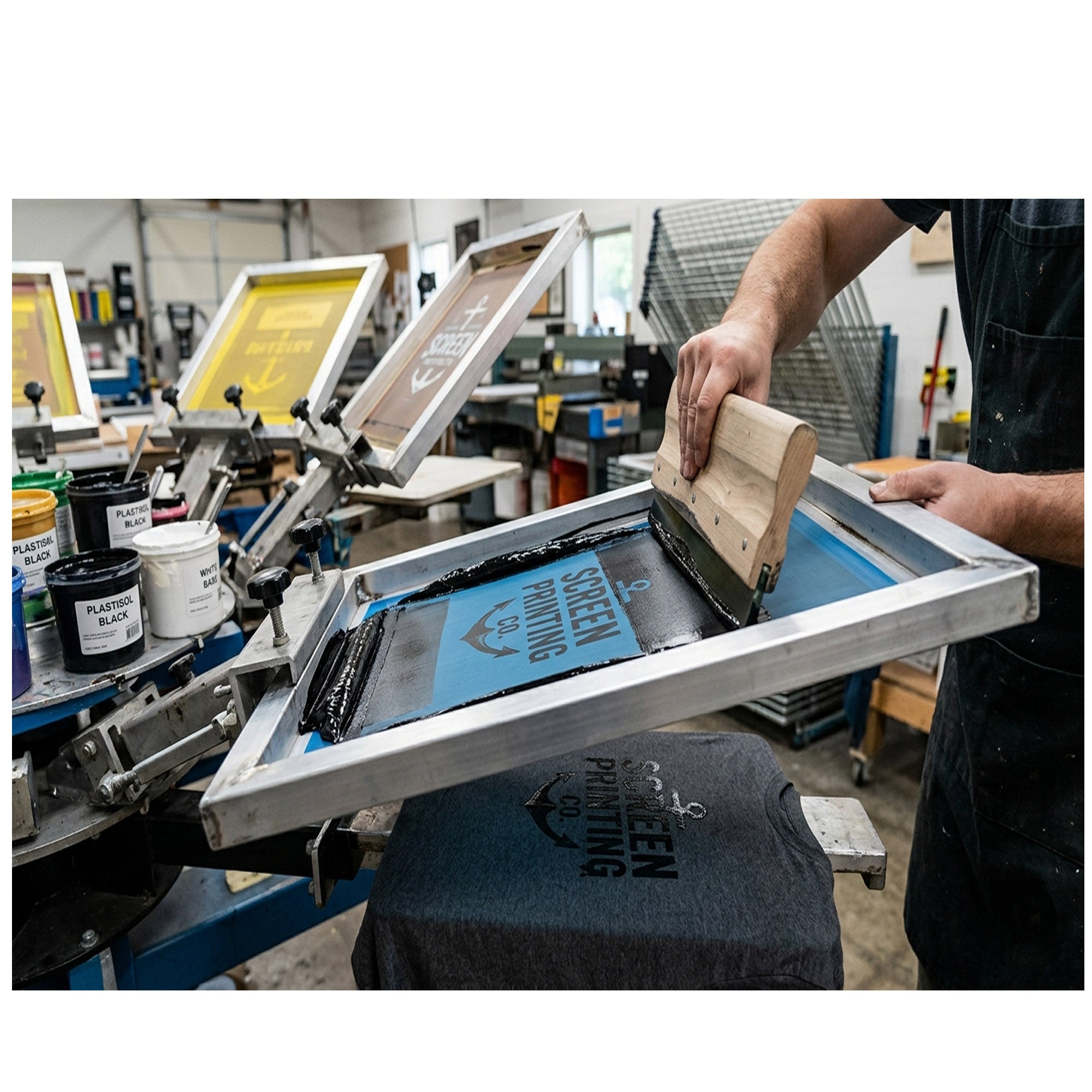

Textile & Apparel Printing:The primary use is for printing T-shirts, hoodies, and tote bags. Lower mesh counts (110–156) are used for opaque white inks on dark fabrics, while higher counts (230+) are used for detailed designs.
Graphic & Industrial Printing:Used for printing on flat substrates like posters, signage, glass, and wood. Aluminum frames are preferred here because the consistent tension ensures colors line up perfectly in multi-color jobs.
Hybrid DTF/Screen Printing:A growing trend in the U.S. is using screen printing for the "under-base" white ink and then applying DTF transfers on top, or using screen printing for specialty finishes (glitter, puff, or glow-in-the-dark) alongside digital prints.
Large-Scale Production:Because they are durable and easily cleaned in an automated washout booth, these frames are the standard for high-volume shops running automatic carousel presses.

Specification	23" x 31" Frame	20" x 24" Frame
Outer Dimension	23” x 31”	20” x 24”
Tube Profile	1.5"	1.4"
Tube Thickness	1/16”	1/18”
Tube Weight	1.4 Lbs	1.1 Lbs
Max Printable Area	< 17" x 25"	< 14" x 18”
Rec. Scoop Coater	19"	16”
Max Squeegee Size	18"	15”

Mesh Count	Thread Dia.	Ink Deposit	Best Applications	Recommended Inks
110 Mesh	80 µm	Thick	Block text, large spot colors, underbase prints. One-pass production.	Plastisol, High-opacity inks
160 Mesh	64 µm	Medium	General textile printing, basic to semi-fine details.	All-purpose, thinner inks
200 Mesh	48 µm	Thin	Detailed prints, soft-hand feel. Reduces ink flooding.	Thinner inks, Plastisol
230 Mesh	48 µm	Very Thin	Fine halftones, delicate lines. Higher ink flow than 305.	Water-based, Discharge
280 Mesh	40 µm	Extra Thin	High-detail halftones, intricate gradients.	Water-based, Discharge
305 Mesh	40 µm	Thinnest	Highest detail, CMYK process, simulated process prints.	Ultra-thin, High-precision

Feature	Specification
Material	High-Grade Lightweight Aluminum
Frame Type	Industrial-Standard Screen Frame
Corrosion Resistance	Excellent (Suitable for water-based & solvent inks)
Performance	High-tension stability, distortion-free

Ensure perfect performance by pairing this frame with our [waterproof clear Film] and [Squeegee Blades] for optimal print results

Key Features

High-Grade Aluminum Construction: * Manufactured from aircraft-grade aluminum alloy, these frames offer a superior strength-to-weight ratio. Unlike wooden frames, they are completely water-resistant and will not warp or swell after repeated wash-and-reclaim cycles.
High-Tension Mesh Bonding: * The mesh is bonded to the frame using specialized industrial adhesives that resist chemical solvents. This ensures the mesh maintains optimal tension (measured in Newtons) for a longer lifespan, resulting in sharper image registration.
Precision Pre-Stretching: * Each frame comes pre-stretched with high-quality monofilament polyester mesh. Available in various mesh counts (e.g., 110, 156, 230, 305), allowing for everything from heavy athletic ink deposits to fine halftone details.
Sandblasted Surface for Adhesion: * The "mesh side" of the aluminum is typically sandblasted to provide a textured surface, ensuring the maximum possible bond between the aluminum and the fabric mesh.
Smooth Welded Edges: * Corners are precision-welded and ground smooth to prevent "mesh popping" and to ensure the frames stack neatly without scratching.

Applications

Textile & Apparel Printing:The primary use is for printing T-shirts, hoodies, and tote bags. Lower mesh counts (110–156) are used for opaque white inks on dark fabrics, while higher counts (230+) are used for detailed designs.
Graphic & Industrial Printing:Used for printing on flat substrates like posters, signage, glass, and wood. Aluminum frames are preferred here because the consistent tension ensures colors line up perfectly in multi-color jobs.
Hybrid DTF/Screen Printing:A growing trend in the U.S. is using screen printing for the "under-base" white ink and then applying DTF transfers on top, or using screen printing for specialty finishes (glitter, puff, or glow-in-the-dark) alongside digital prints.
Large-Scale Production:Because they are durable and easily cleaned in an automated washout booth, these frames are the standard for high-volume shops running automatic carousel presses.

Frequently Asked Questions

Whether you're a beginner starting your first printing business or an established manufacturer upgrading your workflow, these answers will help you make informed decisions and operate your machine with confidence.

Aluminum frames are the industry standard for professional U.S. print shops. Unlike wood, aluminum will never warp, bow, or swell when exposed to water in the washout booth or chemicals during reclaiming. This guarantees perfectly flat registration and consistent mesh tension over hundreds of print runs.

Our frames are professionally stretched using high-grade, low-elongation monofilament polyester mesh. They are typically tensioned between 20 to 25 Newtons (N/cm) depending on the mesh count. This optimal range ensures crisp snap-off and excellent registration without risking mesh tearing.

Mesh selection depends entirely on your ink type and design detail:

110 to 160 Mesh: Best for thick inks (like plastisol), block letters, large spot colors, and underbase prints.
200 Mesh: The "sweet spot" for achieving a softer hand-feel with plastisol while maintaining good detail.
230 to 305 Mesh: Required for water-based or discharge inks, fine lines, half-tones, and high-detail CMYK process printing.

Yes. One of the greatest financial benefits of aluminum frames is their durability. Once the original mesh wears out or tears, the aluminum frame itself remains perfectly intact. You can send the empty frames to a local U.S. re-meshing service or use a professional in-house stretching system to replace the mesh.

Store your screens horizontally or vertically on a dedicated screen rack in a dry, temperature-controlled environment. Avoid stacking heavy objects directly on top of the mesh. Keep them away from sharp tools, and ensure they are completely dry after reclaiming to prevent any premature adhesive degradation.
