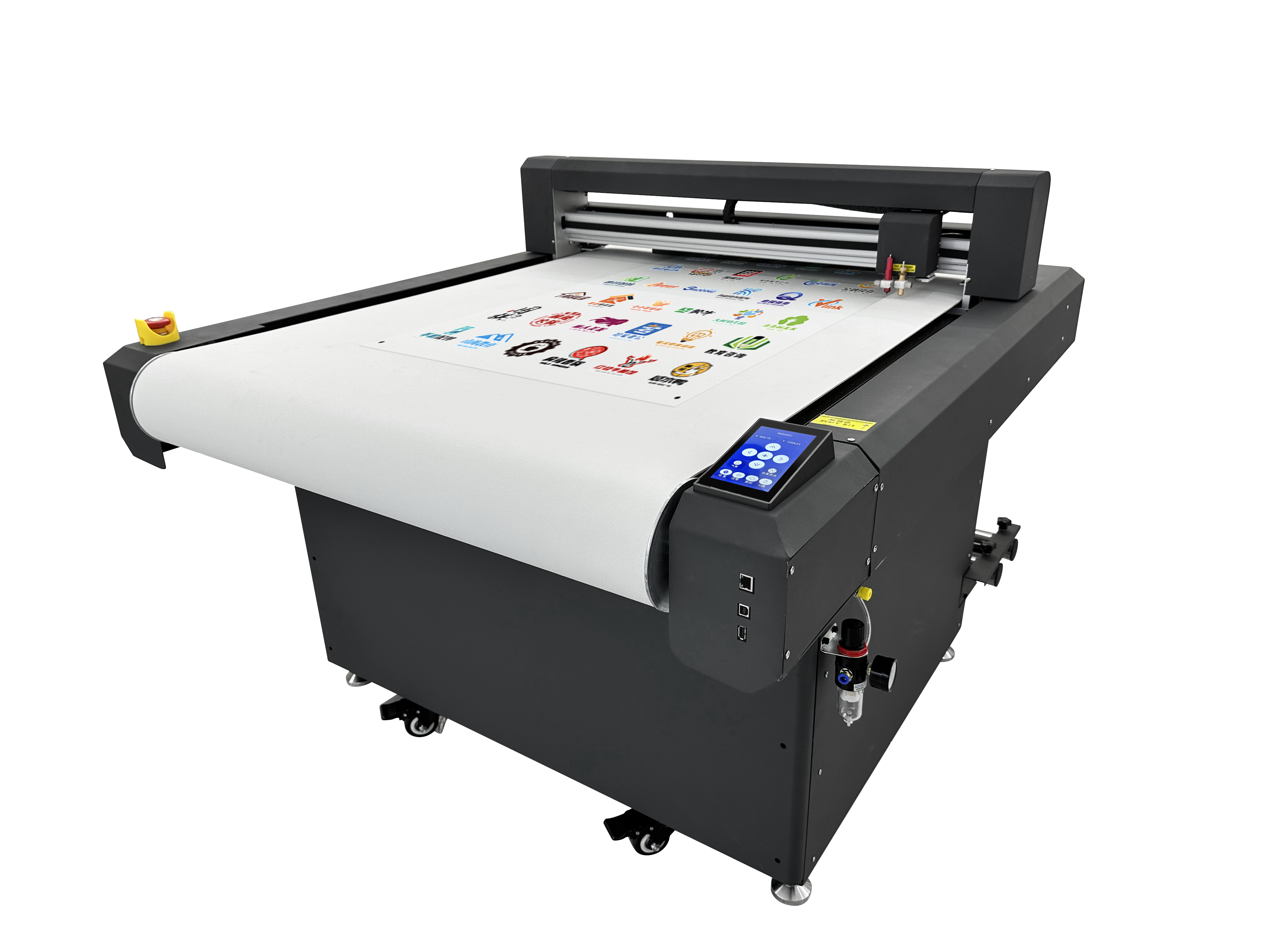

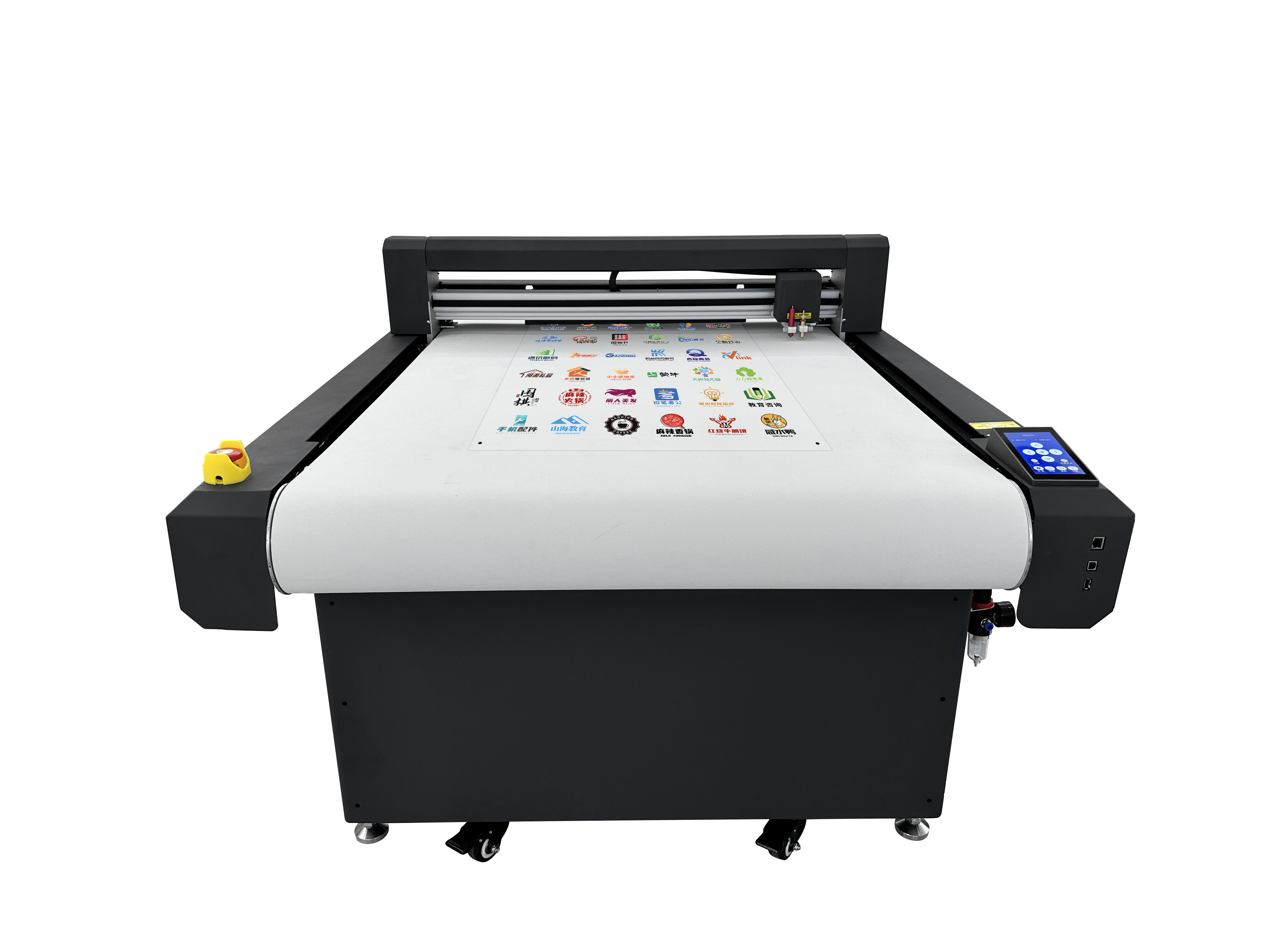

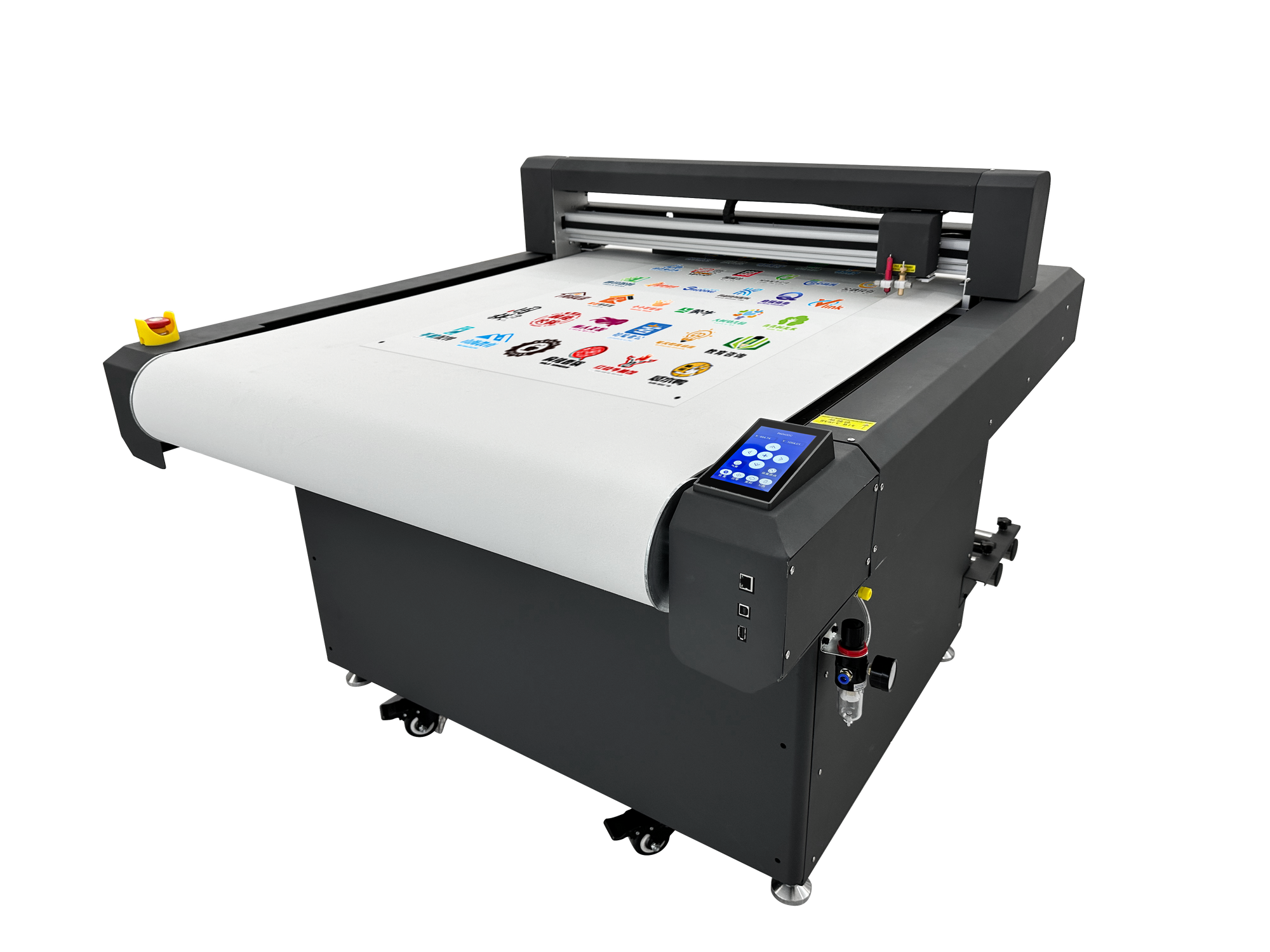

24in Dual-Blade Head Automatic Belt Conveyor Vinyl Cutter With Camera Registration System

SKU: Cutter-P6060DC
Sale price$5,999.00

Get 15% Discount for Pre-order when out of stock.

Instant Operation Training & After-sales service

Installation guide will be provided as soon as the machine arrives .


  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Standard Shipping time

Standard (5-7 business days) or Rush (2-3 business days).

Money Back Guarentee

7 days money back guarentee, buyer pays return shipping

DESCRIPTION
SHL DTF/Screen Material 24in Dual-Blade Head Automatic Belt Conveyor Vinyl Cutter With Camera Registration System
SHL DTF/Screen Material 24in Dual-Blade Head Automatic Belt Conveyor Vinyl Cutter With Camera Registration System
Specification Details Specification Details
Model P6060DC Feeding Method Automatic Conveyor Feeding
Cutting Speed 1600/1000mm/s Drive System Servo Motor
Cutting Thickness ≤1.2mm Interfaces USB, USB Flash Drive (Offline), Ethernet
Cutting Force 1000g Compatible Software SignMaster, AI, AutoCAD, CorelDRAW
Cutting Accuracy ±0.15mm Command Set HPGL Compatible
Cutting Area 24inch x 24inch Control Panel 5-inch LCD Touchscreen
Supported Materials PET, PVC, Vinyl, Fabric, PU, Rubber Machine Dimensions 1300×890×940mm
Positioning System Camera Registration System Packing Dimensions 1600×1300×1300mm
Material Hold-Down Vacuum Suction Gross Weight 220KG

Intuitive Touchscreen OperationA 5-inch LCD touchscreen puts full control at your fingertips. The user-friendly interface allows easy setup, job adjustment, and offline operation, minimizing downtime and simplifying workflow

Dual-Head Functionality for Cutting & CreasingEquipped with two interchangeable tool heads, it performs both precision cutting and clean creasing in one pass, eliminating the need for separate equipment. This makes it ideal for packaging, labels, and paper craft projects.

Automatic Camera Registration CuttingThe built-in camera system scans printed registration marks for accurate, contour-aligned cuts on transfer films, crystal labels, and pre-printed materials. It ensures every cut matches your design perfectly, even on complex patterns

Servo-Driven Precision & DurabilityHigh-precision servo motors deliver reliable accuracy of ±0.15mm, even during high-speed production. The robust design, with lockable casters for easy mobility, is built for long-term, heavy-duty use

Broad Material CompatibilityIt cuts and creases a wide range of materials, including:

  • DTF transfer film, crystal labels, and heat transfer materials
  • Adhesive vinyl, stickers, and paper crafts

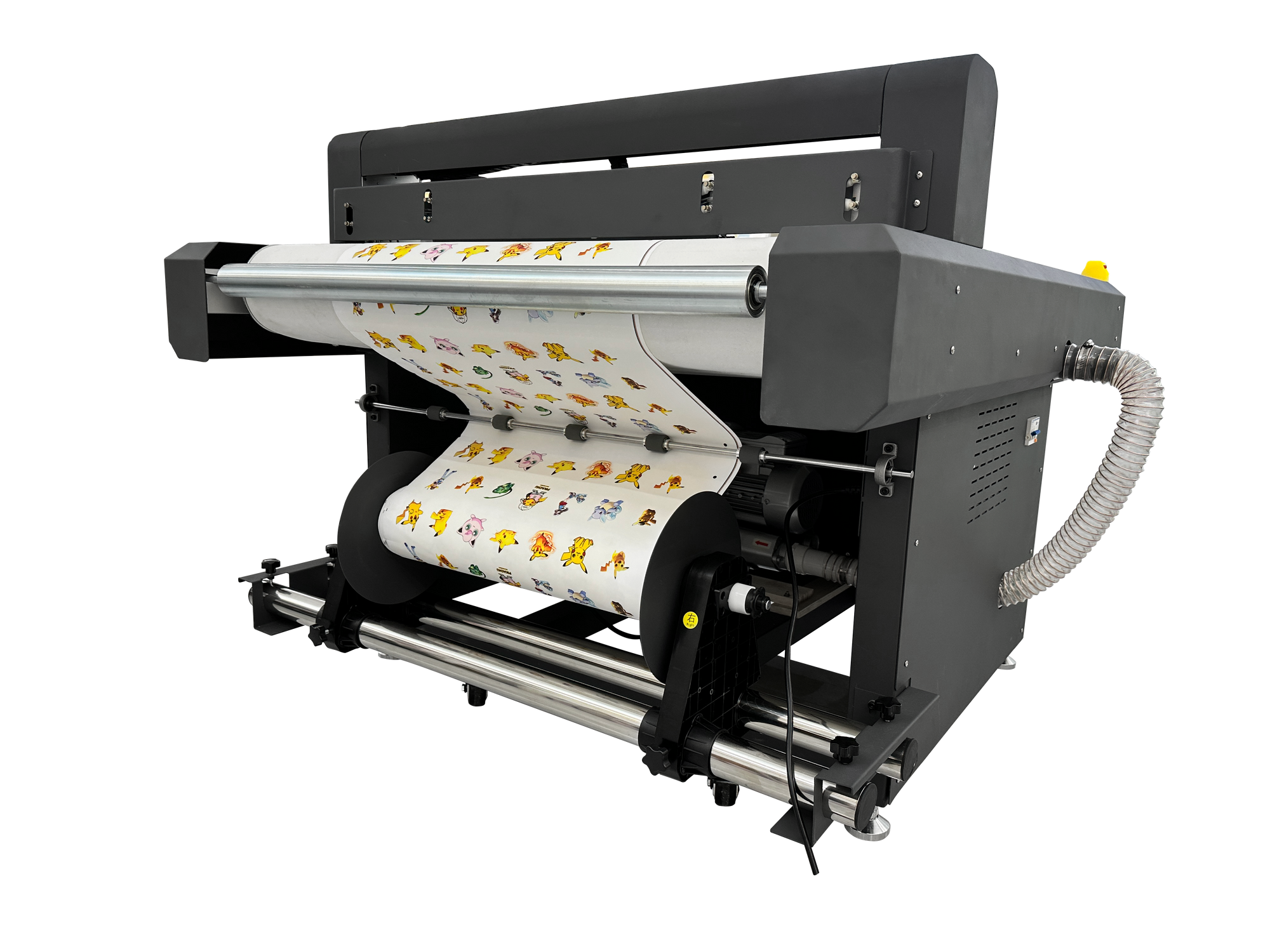

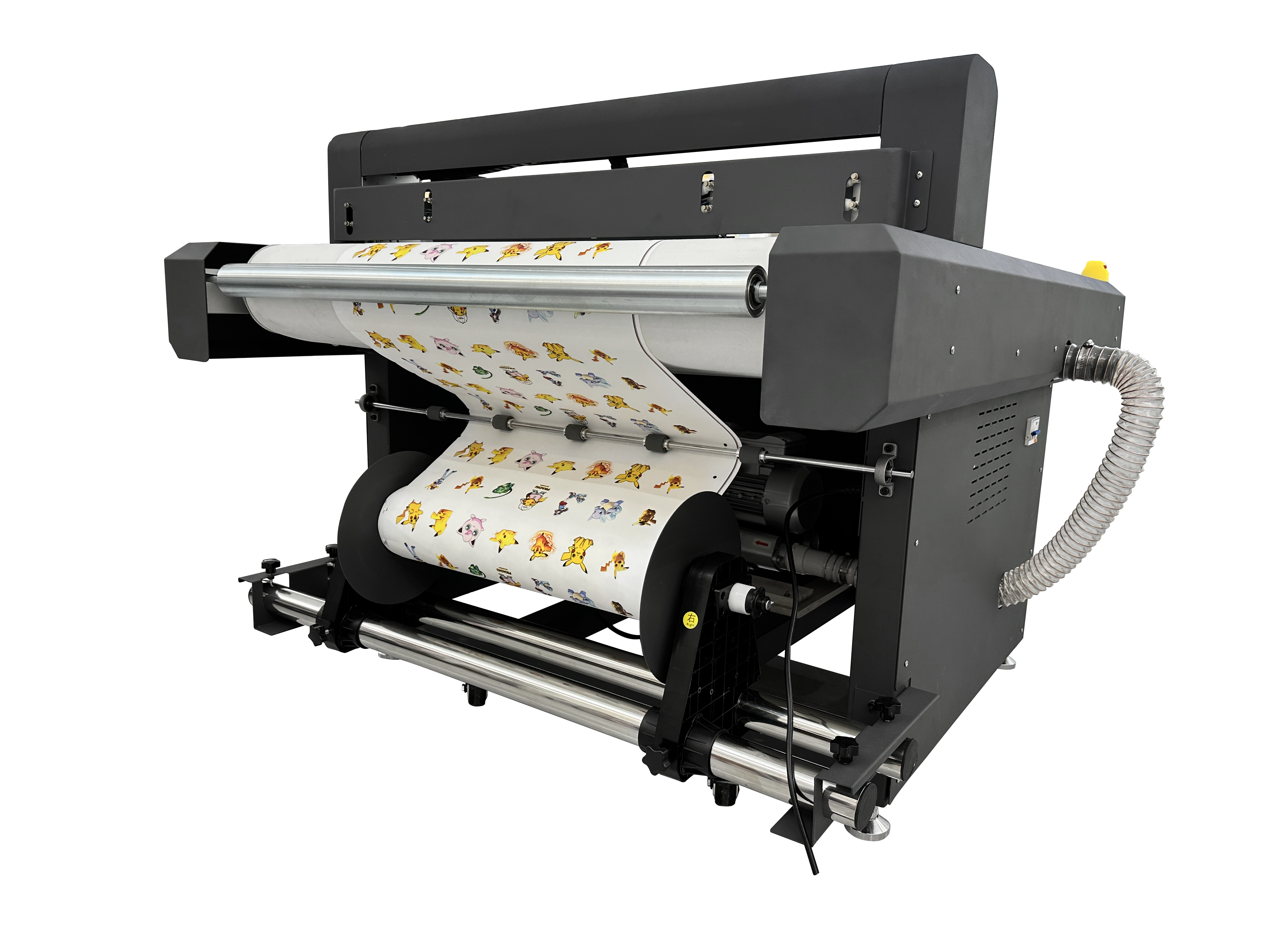

  • Cardstock, packaging board, PVC, PET, PU, and moreIt supports both full cuts (through-cut) and kiss cuts (partial cuts), adapting to every application



SHL DTF/Screen Material 24in Dual-Blade Head Automatic Belt Conveyor Vinyl Cutter With Camera Registration System
SHL DTF/Screen Material 24in Dual-Blade Head Automatic Belt Conveyor Vinyl Cutter With Camera Registration System
Specification Details Specification Details
Model P6060DC Feeding Method Automatic Conveyor Feeding
Cutting Speed 1600/1000mm/s Drive System Servo Motor
Cutting Thickness ≤1.2mm Interfaces USB, USB Flash Drive (Offline), Ethernet
Cutting Force 1000g Compatible Software SignMaster, AI, AutoCAD, CorelDRAW
Cutting Accuracy ±0.15mm Command Set HPGL Compatible
Cutting Area 24inch x 24inch Control Panel 5-inch LCD Touchscreen
Supported Materials PET, PVC, Vinyl, Fabric, PU, Rubber Machine Dimensions 1300×890×940mm
Positioning System Camera Registration System Packing Dimensions 1600×1300×1300mm
Material Hold-Down Vacuum Suction Gross Weight 220KG

Intuitive Touchscreen OperationA 5-inch LCD touchscreen puts full control at your fingertips. The user-friendly interface allows easy setup, job adjustment, and offline operation, minimizing downtime and simplifying workflow

Dual-Head Functionality for Cutting & CreasingEquipped with two interchangeable tool heads, it performs both precision cutting and clean creasing in one pass, eliminating the need for separate equipment. This makes it ideal for packaging, labels, and paper craft projects.

Automatic Camera Registration CuttingThe built-in camera system scans printed registration marks for accurate, contour-aligned cuts on transfer films, crystal labels, and pre-printed materials. It ensures every cut matches your design perfectly, even on complex patterns

Servo-Driven Precision & DurabilityHigh-precision servo motors deliver reliable accuracy of ±0.15mm, even during high-speed production. The robust design, with lockable casters for easy mobility, is built for long-term, heavy-duty use

Broad Material CompatibilityIt cuts and creases a wide range of materials, including:

  • DTF transfer film, crystal labels, and heat transfer materials
  • Adhesive vinyl, stickers, and paper crafts
  • Cardstock, packaging board, PVC, PET, PU, and moreIt supports both full cuts (through-cut) and kiss cuts (partial cuts), adapting to every application



Frequently Asked Questions

Whether you're a beginner starting your first printing business or an established manufacturer upgrading your workflow, these answers will help you make informed decisions and operate your machine with confidence.

Technical Support & Warranty
