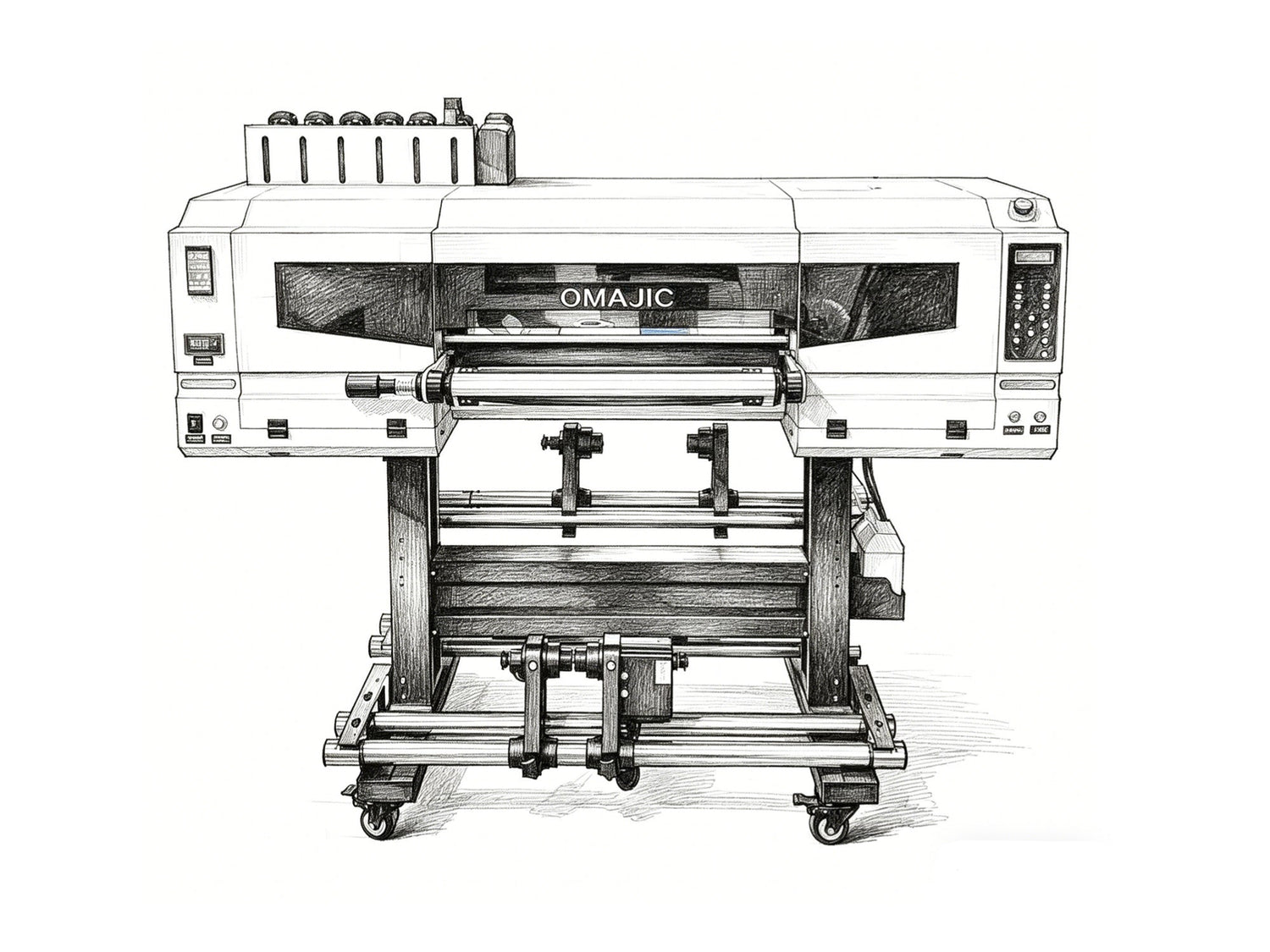

UV DTF Varnish Is Sticky & Not Curing — Here's How to Fix It
Your crystal sticker comes off the printer looking great — then you touch the surface and it's tacky, or it bonds to Film B before lamination even starts. Here's the systematic fix.
🔦 UV Lamp Health Estimator — Drag to Your Operating Hours
3 Reasons UV DTF Varnish Stays Tacky
Under-cured varnish is not one problem — it's three different problems that look identical on the surface. The fix for each is different, so identifying the correct cause first saves hours of trial and error.
UV LED Lamp Aging & Power Decay
UV LED output degrades progressively with operating hours. After 1,000+ hours, the lamp may no longer deliver enough energy to penetrate and cure thick varnish layers — even though it still glows visibly.
Most CommonPrint Speed Too Fast / Pass Count Too Low
At high speeds and low pass counts, each zone of varnish passes under the UV lamp too briefly. Even a healthy lamp can't deliver enough cumulative energy if the ink doesn't spend enough time in the cure zone.
Easy First FixExpired or Frozen-Thawed Varnish Ink
UV varnish cures via photoinitiators in the ink chemistry. If the ink is past its shelf life or has been frozen and thawed, those photoinitiators degrade and the ink simply cannot cure regardless of lamp power.
Check Ink DateHow to Clean, Test, and Replace Your UV LED Lamp Module
Before ordering a replacement lamp, clean the quartz glass first. Ink mist from normal printing builds up on the lamp's quartz glass cover and can reduce effective UV output by up to 30% — a problem that looks exactly like a failing lamp but costs nothing to fix.
Power Off and Let the Lamp Cool (15 Minutes)
Never touch a UV LED module while operating or immediately after — the housing retains heat. Power the machine off fully and wait at least 15 minutes before opening any access panels near the lamp assembly.
Clean the Quartz Glass Cover with IPA
Dampen a lint-free cloth or foam swab with 99% isopropyl alcohol (IPA). Wipe the quartz glass cover gently in one direction — do not scrub in circles, which can redistribute contamination. Repeat with a dry cloth. The glass should be completely clear with no haze or ink film visible.
Run a Post-Cleaning Cure Test
Print your standard varnish-only test tile again. If the surface now cures clean and tack-free, the quartz glass contamination was the issue. Add lamp glass cleaning to your weekly maintenance schedule to prevent recurrence.
If Still Tacky: Check Operating Hours & Replace
Find your machine's lamp hour counter in the maintenance menu (varies by model — see your manual). Compare to the table below. If you're in the replacement zone and cleaning didn't help, replace the UV LED module. Contact SHL for the correct OEM replacement part for your machine model.
| Operating Hours | Lamp Status | Cure Ability | Action |
|---|---|---|---|
| 0 – 400 hrs | New / Full Power | Full penetration of thick varnish layers | Clean glass quarterly |
| 400 – 900 hrs | Aging — Monitor | Output beginning to degrade; may struggle with max varnish density | Clean glass monthly; reduce varnish density 5–10% |
| 900 – 1,400 hrs | Weak — Plan Replacement | Cannot reliably cure standard varnish thickness | Order replacement module; reduce speed as stopgap |
| 1,400+ hrs | Replace Immediately | Output too low for production use; tacky output guaranteed | Replace UV LED module before next production run |
✅ UV Lamp Maintenance Checklist
How to Adjust Pass Count and Print Speed in RIP Software
Pass count (also called feathering mode or bi-directional passes) controls how many times the print head sweeps over a given zone before advancing. More passes = slower effective print speed = more UV exposure time per unit area. This is the fastest, zero-cost fix to try before touching hardware.
Open Your Media Profile in RIP Software
In Photoprint, Maintop, or your OEM RIP, locate the active media profile for your UV DTF Film A. Look for the print mode section — you'll see pass count (4-pass, 6-pass, 8-pass) and possibly a speed percentage or mm/s slider.
Increase Pass Count by One Step
If currently running at 4-pass, switch to 6-pass. If at 6-pass, switch to 8-pass. Do not skip two steps at once — test after each change. Higher pass count also improves dot placement accuracy as a bonus benefit.
Reduce Print Speed to 60–70% if Pass Count Alone Is Insufficient
In machines that allow direct speed control (mm/s or %), try reducing speed to 60–70% of your current setting and re-running the varnish cure test. This increases dwell time under the UV lamp without changing resolution or ink drop placement.
Confirm Lamp Power Setting in RIP / Machine Panel
Some RIP software and machine controllers allow you to set UV lamp power as a percentage. Confirm this is set to 90–100% for varnish layers. If you've been running at 70–80% to extend lamp life, this may be the primary cause of under-curing.
Save Adjusted Settings as a New Preset
Once you find a combination that cures cleanly, save it as a named preset — e.g., "UV DTF Film A — High Cure." This protects your calibration and gives your team a reliable starting point for future runs.
| Setting | Problematic Value | Recommended Target |
|---|---|---|
| Pass Count | 4-pass | 6-pass or 8-pass |
| Print Speed | 80–100% / Max | 60–70% of max |
| UV Lamp Power | Below 80% | 90–100% |
| Varnish Ink Density | Above 85% | 65–75% |
How to Check Whether Your Varnish Ink Has Expired or Separated
UV varnish is a photo-reactive fluid — the photoinitiators in the ink are what trigger polymerization under UV light. These degrade over time, after freezing, or through exposure to light and heat. Once degraded, no amount of lamp power or slower printing will cure the varnish completely.
