Quick Answer: DTF white ink separates because it contains heavy titanium dioxide (TiO₂) pigment particles that sink to the bottom of ink lines and the printhead when the printer sits idle. The fix has three parts: (1) run your white ink circulation system daily; (2) regularly clean the damper, wiper blade, and capping station; (3) for existing clogs, use a professional cleaning solution soak. Read on for the complete step-by-step procedure and prevention schedule.
1. Why DTF White Ink Always Clogs: The Science of TiO₂ Sedimentation
If you've run a DTF printer for more than a week, you've already experienced it: you come in Monday morning, run a nozzle check, and the white channel has massive gaps or no output at all — even though the color channels are perfectly fine. This is not a defect in your printer. It is a fundamental property of white ink itself.

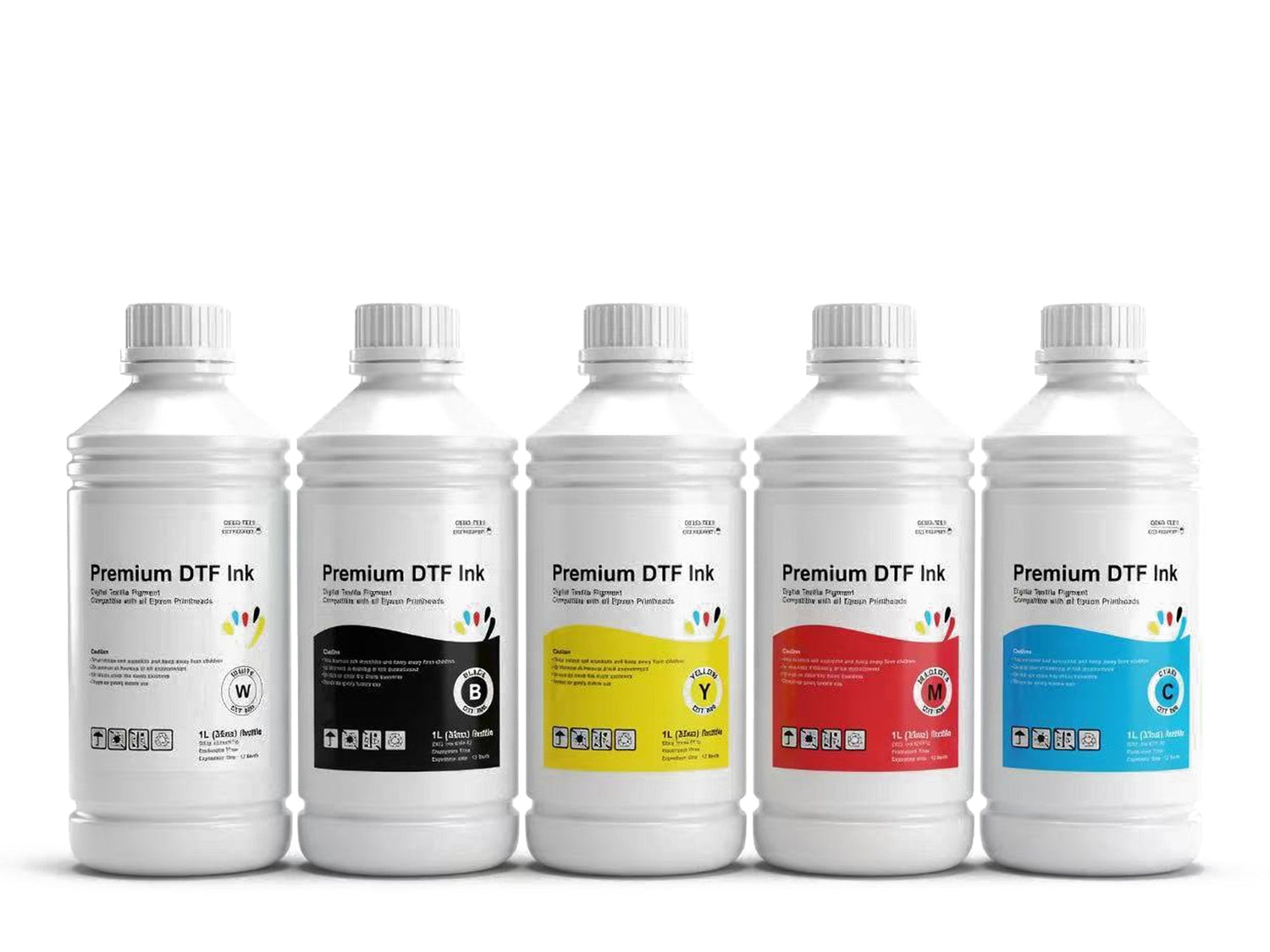

What Makes White Ink Different from Color Inks
All DTF inks are pigment-based, but white ink uses titanium dioxide (TiO₂) as its pigment. TiO₂ is the same compound used to make paint white — it is dense, opaque, and highly effective at providing the bright white underbase that makes colors pop on dark garments.
The problem is that TiO₂ particles are significantly heavier than the pigment particles in cyan, magenta, yellow, or black inks. While color inks will stay in suspension for days or weeks without agitation, white ink begins settling within hours of sitting still.
| Property | White Ink (TiO₂) | Color Inks (CMYK) |
|---|---|---|
| Pigment Type | Titanium dioxide (TiO₂) | Organic pigment dyes |
| Particle Density | High — ~4.2 g/cm³ | Low — ~1.1–1.5 g/cm³ |
| Sedimentation Speed | Begins within 2–4 hours of inactivity | Stable for days to weeks |
| Particle Size | Larger — more likely to block nozzles | Smaller — flows through channels easily |
| Nozzle Clog Risk | Very High — especially in idle systems | Low under normal conditions |
| Circulation Required | ✅ Yes — daily minimum | ❌ Not required |
| Viscosity | Thicker — creates more ink line resistance | Standard — flows freely |
What Happens When White Ink Sits Still
When your DTF printer is idle, TiO₂ particles settle in layers at the lowest points of the ink system:
- First to settle: the white ink supply bottle or bulk tank
- Second: the ink feed lines (tubing between tank and damper)
- Third: the damper (the small clear reservoir directly above the printhead)
- Last and most damaging: inside the printhead nozzle channels themselves
If the printer sits idle for 48+ hours without circulation, the settled TiO₂ begins to dry and bind with the ink binder, forming a semi-solid paste that no amount of automatic head cleaning cycles can dislodge. At this stage, only manual cleaning with professional solutions can recover the head — or worse, the head may require replacement.
2. Diagnosing Clog Severity: Minor, Moderate, or Severe?
Before starting any cleaning procedure, run a nozzle check from your RIP software and identify which severity level you are dealing with. The correct fix depends entirely on the severity — using Xtreme Cleaning Solution on a minor clog is unnecessary, and using regular cleaning on a severe clog will accomplish nothing.
🟢 Minor Clog
Nozzle check: Less than 10% of white channels missing
Symptoms: Slight banding in white underbase, faint streaks
Fix: Run 2–3 automatic head cleaning cycles; check circulation system
Time: ~5–10 minutes
🟡 Moderate Clog
Nozzle check: 10–50% of white channels missing
Symptoms: Large banding gaps, weak white opacity, visible white-channel gaps
Fix: Manual flush with SHL Cleaning Solution + damper purge + wiper/cap station cleaning
Time: ~20–30 minutes
🔴 Severe Clog
Nozzle check: Over 50% missing, or zero white ink output
Symptoms: No white ink printing, or prints with extreme gaps
Fix: Full soak method with SHL Xtreme Cleaning Solution + direct syringe injection
Time: 30 minutes – 2 hours (soak time)
Visual Inspection Checklist
| What You See | What It Means | Action |
|---|---|---|
| White channel banding — color channels fine | White ink sedimentation in head or damper | Start at Step 1 (circulation check) |
| White ink bottle: thick white layer on bottom, clear liquid on top | Severe separation in supply — do not use without shaking | Shake vigorously for 2–3 minutes before use; check circulation |
| Damper looks gray or has thick deposit at bottom | Settled TiO₂ in damper chamber | Purge damper — Step 2; consider replacement |
| Wiper blade caked with dried white ink | Wiper no longer cleaning nozzle plate effectively | Clean or replace wiper blade — Step 3 |
| Capping station foam is dry or crusted white | Printhead is not staying humid between prints | Saturate capping station — Step 3 |
| Zero white ink output after 3 cleaning cycles | Severe clog — dried TiO₂ paste in nozzle channels | Soak method — Step 4 |
3. Step 1 — Check the White Ink Circulation System
The white ink circulation system is the single most important feature for preventing TiO₂ sedimentation. It continuously moves ink through the lines and printhead, keeping pigment particles in suspension and preventing the buildup that leads to clogs.
Verifying Your Circulation System Is Working
- Access your printer's maintenance menu in the RIP software or printer control panel
- Navigate to the white ink circulation or stirring settings
- Check whether the circulation timer is active — it should be set to run at minimum every 30–60 minutes during working hours
- Manually trigger a circulation cycle and watch the ink lines — you should see white ink moving visibly through the transparent tubing
- If no movement is visible, check whether the circulation pump is running (you should hear a faint mechanical sound)
- If the circulation pump is silent or lines are stationary: the pump may need servicing — contact SHL support
White Ink Startup Routine (5 Minutes)
- Shake the white ink supply bottle for 60–90 seconds before the session — even with circulation running, shaking reintegrates any overnight settling
- Trigger a manual circulation cycle and let it run for 3–5 minutes
- Run 1 automatic head cleaning cycle from the maintenance menu
- Print a nozzle check pattern — do not start a production run unless 90%+ of white channels are firing cleanly
- If any gaps appear: run one more cleaning cycle and check again before printing
4. Step 2 — Purge the Damper and Remove Air Bubbles
The damper is a small, clear plastic component in the ink line between the supply tube and the printhead. Its job is to regulate ink pressure and act as a buffer. Because it is a low-flow zone, white ink sediment accumulates in the damper faster than anywhere else in the ink system except the printhead itself.
Signs Your Damper Needs Purging or Replacement
- The damper looks gray, brown, or has a visible white sediment layer at the bottom
- Air bubbles are visible inside the damper chamber
- White ink output is weak even after head cleaning cycles
- The damper has been in service for more than 3 months (recommended replacement interval)
How to Purge the White Ink Damper
Tools needed: 5ml syringe, flexible silicone tubing (fits your damper inlet port)
- Move the printhead carriage to the center position using the maintenance menu — never manually push the carriage
- Locate the white ink damper above the printhead on the carriage assembly
- Attach the syringe tube to the ink inlet port of the damper (the top port where ink enters from the supply line)
- Draw the syringe plunger back slowly — extract 2–3 ml of ink from the damper
- Inspect the extracted ink: if it appears thick, gray, or has visible particles, the damper has significant sediment and should be replaced
- If the ink is clear white and no particles are visible, the purge was successful — the suction has removed trapped air and resuspended settled pigment
- Remove the syringe and allow the damper to refill from the ink supply line naturally
- Run a nozzle check to verify improvement
5. Step 3 — Clean the Wiper Blade and Capping Station
The wiper blade and capping station are the two components that directly contact the printhead nozzle plate during every cleaning cycle. If either is dirty or dry, head cleaning cycles become ineffective — and you can actually drag dried ink residue across the nozzle face, making clogs worse instead of better.
Wiper Blade Cleaning
The wiper blade is a thin rubber strip that scrapes excess ink off the printhead face between prints and during cleaning cycles. Over time, it accumulates a thick crust of dried white ink that prevents it from making clean contact with the nozzle plate.
How to Clean the Wiper Blade
Product: SHL De-Plasticizing Solution — dissolves solidified ink without damaging rubber or plastic.
- Move the printhead carriage to the center position (maintenance menu)
- Locate the rubber wiper blade on the capping station assembly
- Apply 2–3 drops of SHL De-Plasticizing Solution to a lint-free swab
- Gently wipe the blade surface from base to tip — one direction only, not back and forth
- Use a clean, dry swab to remove any dissolved residue
- Inspect the blade: it should be clean, smooth, and flexible. If it is bent, cracked, hardened, or the dried ink will not remove — replace the wiper blade
Do NOT apply De-Plasticizing Solution into the capping station foam or into any printhead channels — it is for external surface use only.
Capping Station Cleaning and Re-Saturation
The capping station is the foam-padded cap that seals over the printhead nozzle face when the carriage returns to its home (parked) position. It keeps the nozzle plate humid between prints. If the foam dries out or becomes crusted with dried white ink, it can no longer maintain a humid seal — accelerating clogging during idle periods.
How to Clean and Re-Saturate the Capping Station
Product: SHL Capping Solution — designed specifically for wet-capping; do not use Cleaning Solution or water.
- Move the printhead to the center position using the maintenance menu
- Drip 4–6 drops of SHL Capping Solution onto the capping station foam pad
- Let it soak for 2–3 minutes to dissolve dried ink crust
- Use a lint-free swab to gently lift out the dissolved residue — do not press hard into the foam
- Repeat until the foam pad is visually clean
- Add a final dose of fresh Capping Solution to leave the foam saturated
- Return the printhead to the home (park) position so the nozzle face rests against the wet foam
End-of-day: Always leave the capping station wet with SHL Capping Solution so the printhead nozzles stay in a humid micro-environment overnight. This alone can prevent most morning startup clogs.
| Component | Cleaning Product | Frequency | Replacement Interval |
|---|---|---|---|
| Wiper Blade | SHL De-Plasticizing Solution + lint-free swab | Daily | Every 1–3 months or when bent/cracked |
| Capping Station Foam | SHL Capping Solution | Daily (clean) + every print session (re-saturate) | Every 3–6 months or when foam degrades |
| Damper (white ink) | Purge with syringe; replace if contaminated | Weekly inspection | Every 2–3 months |
| White Ink Filter | Replace (not cleanable) | N/A | Every 3 months |
| Ink Feed Lines | SHL Xtreme Cleaning Solution flush | When changing ink or before vacation mode | As needed |
6. Step 4 — The Professional Soak Method for Severe Clogs
When automatic head cleaning cycles and manual flushing have failed to clear a severe blockage, the soak method is the last line of defense before printhead replacement. It works by dissolving the dried TiO₂ paste directly at the nozzle face using sustained contact with professional cleaning solution — a process that no amount of pressure-based flushing can replicate.
Soak Method: Full Procedure
Products needed: SHL Xtreme Cleaning Solution, SHL Cleaning Solution, 5ml syringe, lint-free cloth or flat cleaning pad
- Prepare the soak pad: Fold a lint-free cloth 3–4 layers thick, or use a flat cleaning pad. Place it in a shallow tray or directly on the printer's maintenance surface below where the printhead will rest.
- Saturate the pad: Pour enough SHL Xtreme Cleaning Solution onto the pad so it is fully wet but not pooling — the surface should be uniformly damp.
- Position the printhead: Using the maintenance menu, move the printhead carriage to the center position. Gently lower the carriage (or use a maintenance position if your printer supports it) so the nozzle plate face touches the saturated pad surface.
-
Soak time:
- Moderate clog (stubborn but not complete): 15–30 minutes
- Severe clog (near-zero output): 1–2 hours
- Extreme cases (printer was left idle for days): up to 4 hours — refresh the pad with fresh solution every 30–60 minutes
- Post-soak flush: After soaking, move the printhead back to home position. Use a 5ml syringe with SHL Cleaning Solution (not Xtreme) to gently push 3–5ml through the printhead via the damper inlet. This flushes loosened sediment out through the nozzles.
- Run 2–3 automatic cleaning cycles from the maintenance menu immediately after the flush.
- Nozzle check: Print a nozzle check and count recovering channels. If improvement is visible but not complete, repeat the soak for another 30 minutes.
- Final check: When 90%+ of white channels are firing, do a full test print at production quality before returning to customer orders.
7. Daily, Weekly, and Vacation Prevention Schedule
Preventing white ink clogs is dramatically cheaper than fixing them. A complete maintenance routine takes less than 10 minutes per day and will extend printhead lifespan from months to years.
| Timeframe | Task | Product/Method | Time Required |
|---|---|---|---|
| Every Morning (Startup) | Shake white ink bottle; trigger circulation; run 1 head cleaning; print nozzle check | White ink bottle + printer maintenance menu | 5 min |
| Every Evening (Shutdown) | Run circulation; clean wiper blade; re-saturate capping station; park printhead | SHL De-Plasticizing Solution + SHL Capping Solution | 5–8 min |
| Weekly | Purge white ink damper; inspect damper for sediment; clean capping station foam thoroughly; check white ink filter | 5ml syringe + SHL Capping Solution | 15–20 min |
| Monthly | Replace white ink damper; clean ink feed lines; full printhead nozzle flush with Cleaning Solution; replace white ink filter if due | SHL Cleaning Solution + replacement damper + filter | 30–45 min |
| Short Idle (Weekend — 2–3 days) | Run circulation before shutdown; wet-cap with Capping Solution; leave circulation timer active if auto-circulation available | SHL Capping Solution | 5 min |
| Medium Idle (3–7 days) | Flush white ink from printhead and lines; replace with Maintenance Solution; wet-cap with Capping Solution | SHL Maintenance Solution + SHL Capping Solution | 20–30 min |
| Long Idle — Vacation Mode (7+ days) | Full flush of all ink channels with Maintenance Solution; wet-cap; power off correctly per manual | SHL Maintenance Solution (all channels) + SHL Capping Solution | 45–60 min |
8. SHL Maintenance Kit: Which Solution Does What?
The SHL Maintenance Kit for DTF Printers contains five purpose-specific solutions. Using the right solution for the right situation is critical — using a Cleaning Solution where Capping Solution is needed (or vice versa) can cause additional problems.
| Solution | Purpose | When to Use | Where to Apply | ⚠️ Do NOT Use For |
|---|---|---|---|---|
| Cleaning Solution | Flush printheads with minor clogs | After circulation check fails; minor clog recovery | Damper inlet (CIS/damper systems) or cleaning cartridge (up to 3 cycles) | Wet capping; do not leave in lines long-term |
| Xtreme Cleaning Solution | Stubborn / severe clogs; ink line flushing | When Cleaning Solution alone doesn't resolve the clog; ink type change; soak method | Damper inlet; syringe injection; soak pad | Wet capping; not for daily use |
| Capping Solution | Wet-capping — keeps printhead nozzles humid | End of every print session; capping station cleaning and re-saturation | Capping station foam pad only | Do NOT inject into printhead channels; not a cleaning agent |
| Maintenance Solution | Printhead preservation during long idle periods ("Vacation Mode") | Printer idle for 3+ days; before shutdown for vacation | Fill ink lines and printhead channels; replaces ink during storage | Does NOT clean or unclog — must have clean head before use |
| De-Plasticizing Solution | Dissolve solidified ink on external surfaces | Cleaning wiper blade; cleaning dried ink from capping station rim; exterior printhead face cleaning | Apply to lint-free swab, then wipe surfaces only | Do NOT insert into capping station foam or printhead channels |
Price: $19.99 (regularly $25.00 — save 20%) · In stock at SHL Supply, Santa Fe Springs, CA · Ships same or next day.
👉 Order the SHL Maintenance Kit →
9. Why SHL Supply: Auto Circulation + Complete Maintenance Kit + In-Person Training
The best solution to white ink clogging is not cleaning your way out of it every week — it is buying a printer that prevents the problem at the hardware level, paired with the right consumables and a supplier who will teach you how to use both correctly.
🔄 Automatic White Ink Circulation — Built Into the SHL 24" DTF Printer
The SHL 24-inch DTF Printer features a built-in automatic white ink circulation and stirring system that runs on a programmable timer — even when the printer is idle. This is the same technology used in industrial-production DTF systems, and it is the single most effective clog prevention mechanism available.
- Keeps TiO₂ particles continuously in suspension — eliminating the root cause of sedimentation
- Programmable schedule — set it to circulate every 30 minutes, every hour, or continuously
- Operates silently in the background — no manual trigger required
- Works even overnight and on weekends when no one is in the shop
Compared to budget DTF printers with no circulation or only manual stirring, the SHL auto-circulation system can reduce white ink clog incidents by over 80% — and the difference in printhead lifespan is measured in months, not weeks.
🏫 In-Person Maintenance Training at Our Santa Fe Springs Facility
Knowing what to do and actually doing it correctly are two different things. SHL Supply offers hands-on maintenance training at our facility at 12155 Mora Dr, Santa Fe Springs, CA 90670 for all printer purchasers. In a training session, you will:
- Configure your circulation timer for your specific production schedule
- Practice the damper purge procedure on a live machine with SHL technician guidance
- Learn exactly how to clean the wiper blade and capping station correctly — common mistakes that cause more damage
- Go through the full soak method procedure so you can execute it independently
- Set up a vacation mode protocol specific to your printer model
- Leave with a printed maintenance checklist tailored to your production workflow
No other DTF printer supplier in the US offers this kind of in-person, hands-on technical training. Most ship you a machine and a PDF manual. SHL trains you to use it correctly from day one.
🚚 Fast Local Shipping on Maintenance Supplies
When your white ink clogs on a Tuesday morning with a 200-piece order due Thursday, you need cleaning solution today — not in three weeks from an overseas supplier. SHL Supply stocks the complete maintenance kit and all printer consumables locally in Los Angeles:
- Same-day or next-day shipping on all maintenance supplies and consumables
- No overseas freight delays, no customs uncertainty
- Local pickup available at Santa Fe Springs, CA 90670
🛠️ U.S.-Based After-Sales Support
If a soak session doesn't resolve a severe clog, or you need guidance on damper replacement or printhead diagnosis, SHL's after-sales team responds in your business hours:
- Email: info@shl-supply.com
- Office: 562-203-5165 · Monday–Friday 9 AM–5 PM
- In-person support available at our Santa Fe Springs facility
10. Frequently Asked Questions
Why does DTF white ink separate and clog the printhead?
DTF white ink contains titanium dioxide (TiO₂) pigment particles, which are significantly heavier than the pigments in color inks. When the ink sits still — even for a few hours — these particles sink to the bottom of ink lines, dampers, and the printhead nozzle channels. Over time, this settled TiO₂ dries and binds into a paste that blocks ink flow and causes banding or complete nozzle failure.
How do I know if my DTF white ink has separated?
Run a nozzle check. Signs include: missing nozzle rows in the white channel only (color channels print cleanly), weak or faded white ink output, banding across the white underbase layer, or zero white output. Visually, if your white ink supply bottle has a thick white sediment layer at the bottom with clear liquid on top, separation has occurred — shake vigorously before use.
How often should I run the white ink circulation system?
Daily, minimum — even on days you are not printing. On SHL DTF printers with automatic timed circulation, the machine handles this on its programmable schedule. On machines without auto-circulation, manually trigger the circulation cycle at the start and end of every working day. If the printer will be idle for more than 48 hours, flush the white ink channels and replace with SHL Maintenance Solution.
What is the correct way to clean a clogged DTF printhead?
Severity determines the method. Minor clogs (under 10% missing nozzles): 2–3 automatic cleaning cycles. Moderate clogs: manual flush with SHL Cleaning Solution via damper purge. Severe clogs (50%+ missing or zero output): the soak method using SHL Xtreme Cleaning Solution — saturate a pad, rest the printhead nozzle face on it for 15 minutes to 2 hours, then flush and run cleaning cycles.
How do I clean the wiper blade and capping station?
Wiper blade: apply SHL De-Plasticizing Solution to a lint-free swab and wipe base to tip, one direction only — daily. Capping station: drip SHL Capping Solution onto the foam pad, soak 2–3 minutes, wipe clean, re-saturate with fresh solution. Always end the day with the capping station wet so the printhead stays humid overnight.
How long can I leave white ink sitting in the printer without printing?
Maximum 48 hours with daily circulation active. For 3–7 day idle periods: flush white ink from lines and replace with SHL Maintenance Solution. For 7+ days (vacation mode): full flush of all channels with Maintenance Solution and wet-cap with Capping Solution. Never leave undisturbed white ink in a non-circulating system for more than 48 hours.
What is the difference between SHL Cleaning Solution and Xtreme Cleaning Solution?
Cleaning Solution is for flushing printheads with minor clogs — run via the damper/CIS system or cleaning cartridges (up to 3 cycles). Xtreme Cleaning Solution is a stronger formula for stubborn or severe clogs, and for flushing ink tubing during ink changes or the soak method. Neither should be used for wet capping — use Capping Solution for that.
Does SHL Supply offer training on DTF printer maintenance?
Yes. In-person maintenance training is available at our facility at 12155 Mora Dr, Santa Fe Springs, CA 90670 for all printer purchasers. Training covers circulation system configuration, damper purging, wiper and capping station cleaning, the soak method, vacation mode procedure, and ongoing maintenance scheduling.
Get the SHL Maintenance Kit — Stop White Ink Clogs Before They Start
Every DTF print shop eventually faces white ink sedimentation and nozzle clogging. The shops that run efficiently are the ones with the right consumables on hand and a maintenance routine in place. The SHL Maintenance Kit gives you all five solutions you need — for every situation from daily upkeep to severe clog recovery.
What you get in the SHL Maintenance Kit ($19.99):
- ✅ Cleaning Solution — minor clog flushing
- ✅ Xtreme Cleaning Solution — severe clogs and soak method
- ✅ Capping Solution — daily wet-capping and capping station maintenance
- ✅ Maintenance Solution — vacation mode and long-term preservation
- ✅ De-Plasticizing Solution — wiper blade and exterior surface cleaning
👉 Order the SHL DTF Maintenance Kit ($19.99) →
Also from SHL Supply:
- 🖨️ SHL 24-Inch DTF Printer with Auto White Ink Circulation →
- 🎞️ DTF Supplies: Film, Ink, TPU Powder →
- 📦 Complete DTF Print Shop Starter Bundle →
📍 SHL LA Supply
12155 Mora Dr, Santa Fe Springs, CA 90670
📞 562-203-5165 · ✉️ info@shl-supply.com
Mon–Fri 9 AM–5 PM · Same/next-day shipping · In-person training · US-based support
Leave a comment
This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.
