Pneumatic Dual Heat Press Machine: The Complete 2026 Buyer's Guide for High-Volume Printing

If your shop is pressing shirts one at a time on a clamshell press, you already know the bottleneck: your printer can output transfers faster than one platen can cure them. A pneumatic dual heat press solves that problem with two working stations and automatic, air-powered pressing — so while one garment is under heat, you're already loading the next.

In this guide, we break down how a dual platen heat press works, who it's built for, how to use it step by step, and the questions U.S. print shops and wholesale buyers ask us most — all based on the 16x24 Pneumatic Sliding Dual Platen Heat Press we stock right here in Los Angeles County.

Local In Stock for Sale – Dual Heat Press 📍 SHL LA Supply · 12155 Mora Dr, Santa Fe Springs, CA 90670 🚚 Same-day local pickup · Ships within 48 hours nationwide ☎ 562-203-5165 · info@shl-supply.com

---

What Is a Pneumatic Dual Platen Heat Press?

A pneumatic dual heat press uses compressed air (instead of your arm) to raise and lower the heat platen, combined with two sliding lower platens that alternate under a single heating head. Connect an air compressor, set your pressure on the regulator (typically 0.4–0.6 MPa for garment work, adjustable up to 0.8 MPa), and the machine handles the press-and-release cycle automatically.

Pneumatic vs. Manual Heat Press

• Consistency: Air pressure is identical on every single press. No operator fatigue, no "light pressing" at the end of an 8-hour shift.
• Speed: The machine automatically presses and releases each cycle in auto mode. Your operator only loads, aligns, and unloads.
• Ergonomics: No pulling a heavy handle hundreds of times a day — a major factor in employee retention for production shops.

Dual Station vs. Single Station

With a dual platen design, the heat head slides between two stations. While station A is pressing, the operator preps station B. In real-world production, that means 100+ shirts per hour, and up to 160 with a dialed-in fast workflow — roughly double the output of a comparable single press with the same operator.

If your volume is still under ~30 shirts a day, a single station machine like our Semi-Auto Open Heat Press 16" x 20" is the more budget-friendly starting point. You can always add a dual station press when orders scale.

---

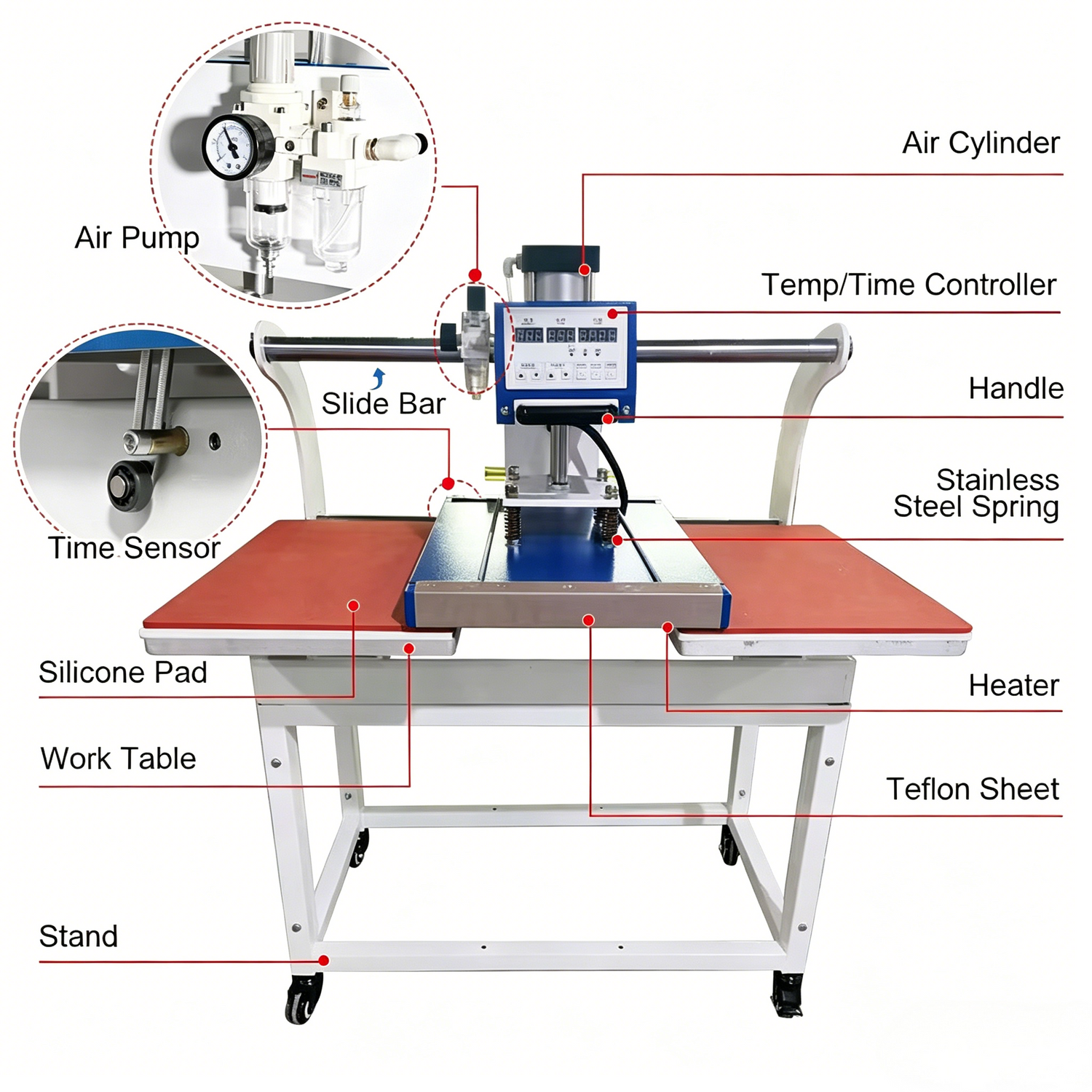

Key Features of the SHL 16x24 Pneumatic Dual Heat Press

1. Oversized 16" x 24" Platens for Full-Size Prints

The 16x24 format is the industry standard for oversized DTF gang sheets, jumbo front prints, and all-over designs on adult XL–3XL garments. It also handles hoodies, jackets, mousepads, ceramic tiles, and items up to 2.36" thick.

2. Even, Integrated Heating Element

The heating tube and heating plate are cast as one integrated part, which means faster heat-up, longer element life, and even temperature across the entire platen — no cold corners, no half-cured transfers, and consistent professional-quality results from edge to edge.

3. Dual Laser Alignment with Magnetic Mounts

The press comes with 2 alignment lasers for perfect transfer positioning. The magnetic mounts let you move or reposition the lasers anywhere on the unit in seconds — ideal when you switch between left-chest logos, center prints, and sleeve placements.

4. Full Digital LCD Control

Set temperature (up to 299 °C / 570 °F), time (1–999 s), and a press counter on the large LCD panel. The counter is a favorite of production managers: it tracks output per shift automatically.

5. Auto Press & Release Cycle

In auto mode, the machine presses and releases on its own once a station slides into position — boosting productivity and letting your team press more shirts with minimal effort.

6. Safety First: Emergency Stop + CE Certification

An Emergency Stop button instantly releases air pressure and lifts the platen. The machine is CE certified, meeting recognized safety standards for electrical and mechanical design — an important checkbox for commercial insurance and B2B procurement teams.

7. Industrial Mobility

A heavy-duty wheel system makes this 300+ lb machine easy to reposition on your shop floor, while locking casters keep it planted during production.

Quick Specs

Spec	Detail
Platen Size	16" x 24" (dual stations)
Voltage	110V / 220V
Power	1.6 kW
Temperature Range	0–299 °C
Timer	1–999 s
Max Item Thickness	2.36"
Pressure	Adjustable up to 0.8 MPa
Certificate	CE
Availability	In stock — Santa Fe Springs, CA

---

How to Use a Pneumatic Dual Heat Press (Step by Step)

Here's the exact workflow we teach in our in-store demos:

Step 1: Connect the Air Compressor

Attach your compressor to the quick-connect fitting, open the air valve, and set the regulator to 0.4–0.6 MPa (roughly 60–90 PSI) for standard garment transfers. Heavier substrates like leather patches may need more.

Step 2: Set Temperature and Time

On the LCD panel, dial in your transfer's cure settings. Common U.S. starting points:

• DTF transfers: 300–325 °F for 10–15 seconds
• Sublimation on polyester: 380–400 °F for 45–60 seconds
• HTV vinyl: 305 °F for 10–15 seconds

Always confirm with your film or vinyl supplier's spec sheet.

Step 3: Align with the Lasers

Load a garment on station A and use the two magnetic-mount lasers to line up your transfer. Reposition the lasers once for a batch job and every shirt after that aligns in seconds.

Step 4: Slide and Press

Slide the station into position — the press cycle starts automatically, applying even pneumatic pressure across the full 16x24 platen. While station A cures, load and align station B.

Step 5: Alternate Stations and Peel

When the timer ends, the head releases automatically. Slide stations, peel your transfer (hot or cold peel per your film), reload, and repeat. With rhythm, one operator can sustain 100–160 pressed shirts per hour.

Step 6: Shut Down Safely

Power off the heating element, release air pressure from the system, and let the platen cool before covering.

---

Who Should Buy a Dual Platen Heat Press?

• DTF and screen print shops curing high volumes of transfers daily — pair it with a DTF printer and the dual stations keep pace with print output.
• E-commerce and print-on-demand sellers scaling past the hobby stage, where per-shirt labor time directly determines margin.
• Uniform, team, and event printers who face crunch deadlines (200 jerseys by Friday is very doable at 100+/hour).
• Wholesale buyers and distributors — we offer B2B pricing, bundle deals with DTF printers and cutters, and a distributor program.

Rounding out your shop? Many customers pair the dual press with our Double Heated Hat Heat Press to press two caps at once — hats are one of the highest-margin add-ons in custom apparel.

---

Why Buy from SHL LA Supply? Local Stock, Fast Shipping, Real After-Sales

Most heat press listings you'll find online drop-ship from overseas: 4–8 week transit, no phone support, and no one to call when a solenoid fails mid-order. We do it differently.

📍 U.S. Warehouse in Los Angeles — See It Before You Buy

Our machines are in stock at 12155 Mora Dr, Santa Fe Springs, CA 90670 (Los Angeles County). Local customers can schedule an in-store demo, test the press with their own transfers, and drive home with it the same day. Call 562-203-5165 to book.

🚚 Same-Day Pickup, 48-Hour Nationwide Shipping

Orders ship from our LA warehouse within 48 hours, with standard (5–7 business days) or rush (2–3 business days) delivery across the U.S. No ocean freight, no customs delays.

🛠 Complete After-Sales Support

• Lifetime technical support with remote troubleshooting and operator training
• CE certified machines with warranty coverage on parts and heating elements
• Local U.S. parts inventory — solenoids, air valves, heating controllers, and temperature boards ship fast from California, minimizing your downtime
• On-site support available for Southern California customers

When your press is the heart of your production line, buying from a local supplier with real parts on the shelf isn't a luxury — it's insurance.

---

FAQs: Pneumatic Dual Heat Press (U.S. Buyers & B2B)

Does a pneumatic heat press need an air compressor?

Yes. The pneumatic system requires a separate compressor. For the 16x24 dual press, we recommend at least a 6-gallon tank with 90–120 PSI output to keep pressure stable across both stations. Most shops already own a suitable compressor.

How many shirts per hour can a dual station heat press produce?

With one trained operator alternating stations, expect 100+ shirts per hour, and up to 160/hour with short-cure DTF transfers and a streamlined loading workflow — roughly double a single-station press.

Is it 110V or do I need 220V?

Both options are available. The 110V version runs on standard U.S. shop power; 220V is recommended for facilities running multiple machines, as it draws lower amperage for the same 1.6 kW output.

Can I press hoodies, hats, and thick items?

The dual press accepts items up to 2.36" thick — hoodies, jackets, tiles, and metal signs are no problem. For curved caps, a dedicated curved-platen machine like our Double Heated Hat Press delivers far better results than a flat platen.

Is this machine safe for employees to operate? Is it certified?

Yes. It carries CE certification, includes an Emergency Stop button that instantly vents air pressure and lifts the platen, and requires no heavy manual clamping — reducing repetitive-strain risk on your production floor.

What's the warranty and where do replacement parts come from?

Warranty covers parts and the heating element, backed by lifetime technical support. Critically for U.S. buyers: we stock replacement parts locally in Los Angeles, so a failed valve means days of downtime, not weeks waiting on overseas shipping.

Do you offer wholesale or distributor pricing?

Yes. B2B customers, print shops buying multiple units, and resellers can apply through our distributor program or contact us directly for volume quotes and equipment bundles (heat press + DTF printer + cutter).

I'm just starting out — is a dual press overkill?

Possibly. If you're pressing under ~30 shirts a day, start with the Semi-Auto Open Heat Press 16" x 20" — a lower-cost single station with the same reliable heating. Upgrade to the dual pneumatic press when order volume justifies it; many of our customers run both side by side.

---

Ready to Double Your Output?

The 16x24 Pneumatic Sliding Dual Platen Heat Press is in stock now in Los Angeles — CE certified, backed by local parts and lifetime U.S. technical support.

Visit us: 12155 Mora Dr, Santa Fe Springs, CA 90670 (Mon–Fri, 9am–5pm) Call: 562-203-5165 · Email: info@shl-supply.com Ship it: Orders leave our California warehouse within 48 hours.

Schedule your in-store demo today and see 100 shirts an hour with your own eyes.
