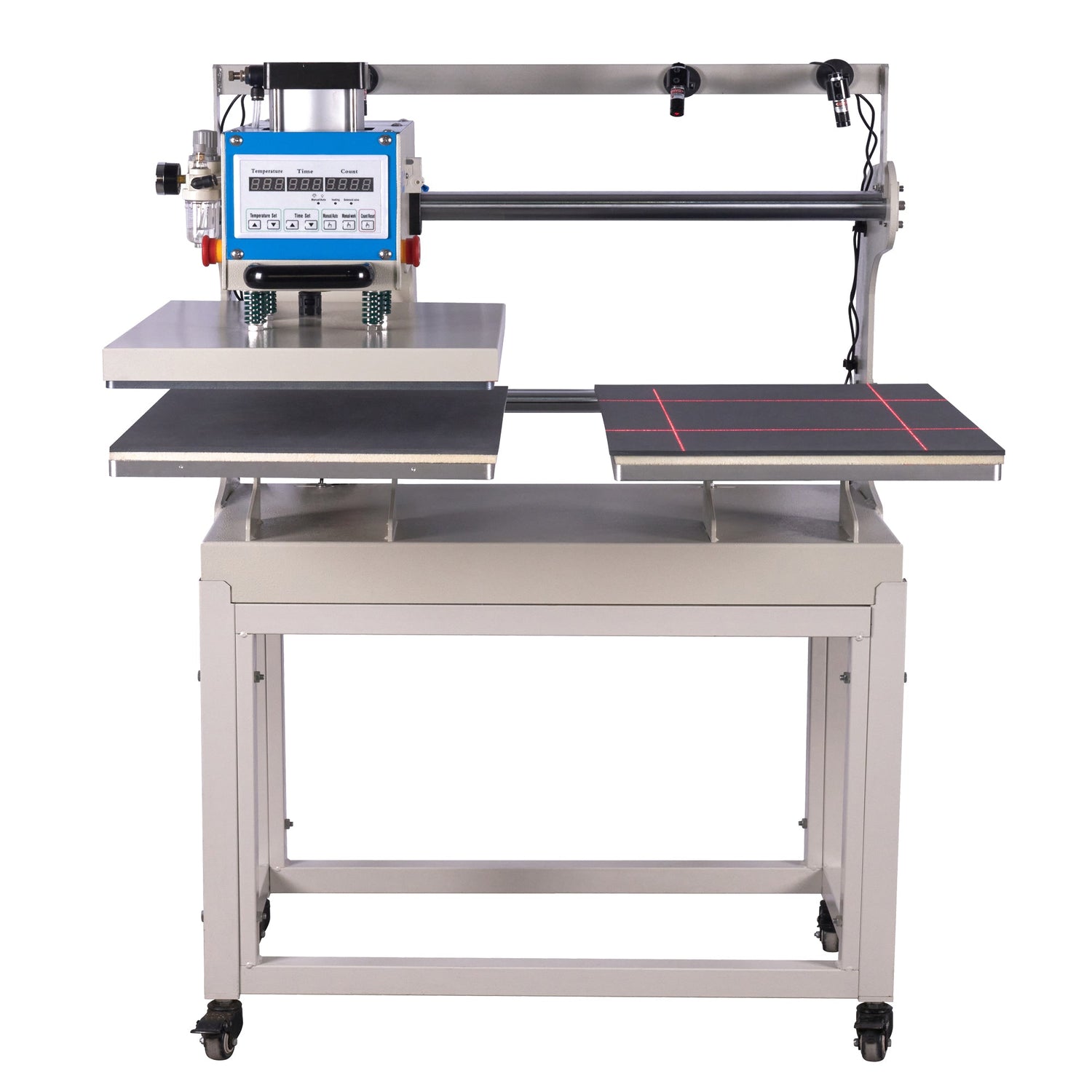

The 16×24 Dual Platen Pneumatic Heat Press Buyer's Guide — and Why Local Service Changes Everything
What separates a machine that runs for years from one that becomes a $1,700 paperweight? This guide answers that — and explains why where you buy matters as much as what you buy.
A dual platen pneumatic heat press is one of the highest-leverage investments a print shop can make. Press two shirts while loading the next. Never touch a manual lever again. But the machine is only half the equation — the other half is who supports it when something goes wrong at 9 PM before a 500-piece order ships Monday morning.
What Is a Dual Platen Pneumatic Heat Press — and Who Needs One?
A dual platen (also called double station) heat press uses two lower platens that alternate under a single upper heating element. While one platen is under the heat head applying a transfer, the operator loads the next garment on the other — creating a near-continuous production cycle with no dead time between presses.
Pneumatic refers to the actuation system: compressed air drives the heat platen down with consistent, pre-set force, instead of a manual lever that varies with operator fatigue. The result is identical pressure on every single press — critical for professional DTF and sublimation output.
This class of machine is designed for shops that have outgrown a manual clamshell and are running 50+ pieces per day. If you're doing custom apparel, DTF transfers, or branded merchandise in volume, the upgrade pays for itself in labor savings within weeks.
Pro tip: The 16×24 inch platen is the industry standard for oversized adult garment printing. It covers a full front chest print on XL–3XL shirts without repositioning — the most common bottleneck in production shops running smaller 16×20 machines.
SHL LA Supply vs. Competitors: What the Specs Actually Tell You
We analyzed competitor offerings in the dual platen 16×24 pneumatic category to show you where the real differences lie — beyond the headline specs.
| Feature | SHL LA Supply 16×24 | Typical Competitor |
|---|---|---|
| Price | $1,699 | $1,848–$2,297 |
| Platen Size | 16″ × 24″ | 16″ × 24″ |
| Max Pressure | 0.8 MPa (120 PSI) | 0.6–0.8 MPa |
| Laser Positioning | ✓ Included | Add-on ($200–$400 extra) |
| LCD Digital Control | ✓ Full display (Temp + Time + Count) | Basic display |
| Emergency Stop | ✓ Dedicated E-Stop button | Varies by model |
| Voltage Options | 110V & 220V | Usually 110V only |
| CE Certification | ✓ CE Certified | Not always certified |
| Warranty — Structure | 24 months | 12 months |
| Warranty — Heating Element | 12 months | 12 months |
| Technical Support | Lifetime (US-based) | Limited post-warranty |
| In-Store Demo | ✓ Available (Santa Fe Springs, CA) | ✗ Online only |
| Local Parts Inventory | ✓ LA warehouse | Ship from overseas (2–4 weeks) |
| Shipping | Within 48 hours from LA | 7–15 business days |
| Max Item Thickness | 2.36 inches | ~2 inches |
7 Features That Make the SHL 16×24 Dual Platen the Professional's Choice
Laser Positioning — Included Standard, Not an Upsell
Precise transfer placement is the difference between professional output and wasted blanks. Our machine includes laser positioning as standard equipment — competitors charge $200–$400 more for this feature as an add-on. The laser cross-hairs project exactly where the transfer will land, eliminating crooked prints and misaligned logos on every press cycle.
0.8 MPa Pneumatic Pressure — Consistent on Every Press
Manual lever presses vary with operator fatigue and posture. Our pneumatic cylinder delivers the same exact pressure — up to 0.8 MPa (120 PSI) — on press #1 and press #500. This consistency is what makes DTF transfers bond reliably, sublimation colors reproduce accurately, and wash durability stay predictable across an entire production run.
Full LCD Control Panel — Temperature, Time, and Production Count
Our large digital display shows temperature, press time, and a production counter simultaneously. The counter alone saves hours of manual tallying on large orders. Temperature is adjustable from 0–299°C, and the delay timer (1–999 seconds) accommodates every transfer type from DTF and sublimation to screen-print patches and specialty materials.
Emergency Stop Button — Industrial Safety Standard
Pneumatic machines apply significant force. Our E-Stop button instantly releases air pressure and lifts the platen — essential when a transfer slips mid-press or an operator's hand gets too close. This is a standard feature on industrial equipment that is surprisingly absent from many competing models in this price range.
110V & 220V Dual Voltage — Runs in Any US or International Shop
Whether you're in a standard US commercial space (110V) or a production facility with 220V industrial wiring, our machine runs on either without modification. Most competitors offer only 110V in this price range. This matters significantly for shops in older buildings, or for buyers who may relocate or expand to a new facility.
CE Certified — Meets International Safety & EMC Standards
CE certification confirms that our machine has been independently verified to meet European safety, electromagnetic compatibility, and low-voltage directives. In the US market, CE-certified equipment is increasingly required by commercial landlords and insurance carriers. It is also a signal of manufacturing quality — uncertified machines have not passed this independent review.
Accepts Items Up to 2.36 Inches Thick — Hoodies, Jackets, Hats, Tiles
The generous platen clearance means you're not limited to flat T-shirts. Press hoodies, zip-up jackets, denim, canvas bags, ceramic tiles, mousepads, metal pendants, and pearl board. The silicon mat and sponge lower platen distribute heat evenly even across uneven surfaces — critical for consistent adhesion on thick or structured items.
Full Technical Specifications
| Specification | Detail |
|---|---|
| Voltage | 110V / 220V (switchable) |
| Power | 1.6 kW |
| Temperature Range | 0–299°C (adjustable) |
| Timer Range | 1–999 seconds |
| Max Pressure | 0.8 MPa (120 PSI) |
| Recommended Working Pressure | 0.4–0.6 MPa |
| Platen Size | 16″ × 24″ (dual station) |
| Machine Dimensions | 35″ × 33″ × 52″ |
| Package Size | 42.5″ × 33.9″ × 32.3″ |
| Gross Weight | 306.5 lbs |
| Max Item Thickness | 2.36 inches |
| Compatible Materials | Cotton, polyester, chemical fiber, pearl board, metal pendant, mousepad, vitrolite, ceramics |
| Display | Large LCD — temperature + time + production count |
| Safety Features | Emergency stop, auto-release pneumatic system |
| Certification | CE |
| Warranty — Parts | 6 months |
| Warranty — Heating Element | 12 months |
| Warranty — Machine Structure | 24 months |
| Technical Support | Lifetime (US-based team) |
| Price | $1,699.00 |
The Advantage No Online-Only Competitor Can Match: Local LA Service
When something goes wrong with an industrial machine, the answer is never "wait 3 weeks for a part to arrive from overseas." Our Santa Fe Springs warehouse is your production partner — not a drop-shipper.
Warranty & Service Commitment
Our warranty is structured to protect the components that actually fail in the field — with support that outlasts the warranty period itself.
What You Can Press With a 16×24 Dual Platen Machine
DTF Heat Transfers (Direct-to-Film)
The 16×24 platen is the standard for full-front DTF prints on adult garments. The consistent pneumatic pressure ensures proper adhesion every time — critical for DTF transfers, which require even contact across the entire transfer area to bond cleanly to the fabric.
Sublimation on Polyester and Hard Substrates
Sublimation requires precise temperature and dwell time — exactly what digital pneumatic control delivers. Press sublimation shirts, mousepads, ceramic tiles, metal signs, and pearl boards with identical settings every cycle.
Screen Print Patches and Emblems
Thick embroidered patches, woven labels, and emblem transfers require higher pressure than standard heat transfers. The 0.8 MPa maximum pressure and 2.36-inch clearance handle structured items that manual presses cannot properly seat.
Hoodies, Jackets, and Outerwear
Thick garments compress the lower platen sponge pad to achieve even contact — the silicon mat and sponge combination in our lower platen is specifically designed for this. Set the pressure regulator appropriately and the machine handles 600-fill hoodies as reliably as lightweight tees.
Frequently Asked Questions
Does this machine come with an air compressor, or do I need one separately?
The heat press requires a separate external air compressor — it is not included. For a 16×24 dual platen press, we recommend a compressor with at least a 6-gallon tank outputting 90–120 PSI consistently. We stock compatible compressors at our LA warehouse and can advise on the right sizing for your production volume when you call us at 562-203-5165.
Can I come see this machine in person before buying?
Yes — and we encourage it. Visit us at 12155 Mora Dr, Santa Fe Springs, CA 90670 (Los Angeles County). Call 562-203-5165 to schedule an in-store demo. You'll see the machine running live, press a test garment, and speak directly with our technical team. No other dual platen supplier in our price range offers this.
How is this different from a manual double-station clamshell press?
Three critical differences: (1) Pressure consistency — pneumatic delivers the exact same force on every press, a manual lever varies by 20–30% based on the operator. (2) Speed — pneumatic auto-release means faster cycle times with no manual effort. (3) Safety — the pneumatic system is controlled; a manual clamshell with no auto-release is a common cause of burn injuries in production environments. The LCD count feature also tracks your production automatically.
What pressure setting should I use for DTF vs. sublimation?
For DTF transfers, a working pressure of 0.5–0.6 MPa is typically ideal for standard garments. Sublimation on fabric works well at 0.4–0.5 MPa (lighter pressure preserves fabric texture). For hard substrates like ceramic tiles or metal, increase to 0.6–0.7 MPa. Always test with a scrap garment when switching materials. Our technical team can provide material-specific settings by phone or video call.
How long does shipping take, and where do you ship from?
We ship from our Santa Fe Springs, CA warehouse — in Los Angeles County. Orders placed before our daily cutoff ship within 48 hours. West Coast businesses typically receive equipment in 2–3 business days via standard freight. Rush shipping (2–3 business days nationwide) is available at checkout. Local pickup at our warehouse is also available at no charge.
What happens if a part fails after the warranty period?
Our lifetime technical support means you can always call us for troubleshooting and parts guidance — there is no support expiration date. We maintain US local inventory of common replacement components (solenoids, valves, heating controllers). Out-of-warranty parts are sold at cost. Most common maintenance items are self-installable with our remote guidance, avoiding expensive on-site service calls.
Can I pair this press with your DTF printer and vinyl cutter as a full production system?
Yes — this is exactly how our customers get the best results. The 16×24 heat press pairs directly with our 24-inch DTF printer combo and vinyl cutter for a complete print-and-transfer workflow. Because we supply all three components, our technical team can help you tune the entire production line — ink settings, film release temperatures, and press parameters — as a single integrated system. No other supplier in our price range offers this level of workflow support.
Ready to Double Your Production Output?
$1,699 · CE Certified · Laser Positioning Included · Lifetime US Technical Support · Ships from Los Angeles in 48 Hours
